2.6.20. KSNW

2.6.20.1. Introduction

Roof of the North Wing building at the Strand campus of Kings College in the City of Westminster, London. Gas analysers, eddy covariance set up, WXT510 and a CNR1 have been deployed here.

2.6.20.2. Site metadata

Site ID	KSNW
Full Name	Kings College London (Strand Campus) North Wing Building
Network	LUMA
Longitude	-0.115947	degrees
Latitude	51.512195	degrees
Start date	2011-10-11	UTC
End date	2016-02-18	UTC
Displacement height	19.0	m
City	London

2.6.20.3. Deployments at site

Table 2.92 All site deployments

Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
49	CNR1	000220	single	CNR1	2012-09-19	2016-02-18
54	GILL121R03	307	ec	EC	2015-09-17	2016-01-12
234	WXT510	B084005	single	WXT	2012-05-16	2016-02-18
235	WXT510	B0840006-G0630168	single	WXT	2011-03-14	2011-03-27
339	CSAT3	0192-2	ec	Ec	2013-03-17	2015-09-17
339	LI7500A	75H-1973	ec	Ec	2013-03-17	2015-09-17
459	LI840	HGA-0416	profile_complex	Gas Analyser Li840-1	2012-04-11	2013-02-25
459	LI840	HGA-0416	profile_complex	Gas Analyser Li840-1	2012-04-11	2013-02-25
459	LI840	HGA-0416	profile_complex	Gas Analyser Li840-1	2012-04-11	2013-02-25
459	LI840	HGA-0416	profile_complex	Gas Analyser Li840-1	2012-04-11	2013-02-25
459	LI840	HGA-0416	profile_complex	Gas Analyser Li840-1	2012-04-11	2013-02-25
459	LI840	HGA-0416	profile_complex	Gas Analyser Li840-1	2012-04-11	2013-02-25
459	LI840	HGA-0416	profile_complex	Gas Analyser Li840-1	2012-04-11	2013-02-25
459	LI840	HGA-0416	profile_complex	Gas Analyser Li840-1	2012-04-11	2013-02-25
460	LI840	HGA-0418	profile_complex	Gas Analyser Li840-2	2013-02-25	2013-05-07
460	LI840	HGA-0418	profile_complex	Gas Analyser Li840-2	2013-02-25	2013-05-07
460	LI840	HGA-0418	profile_complex	Gas Analyser Li840-2	2013-02-25	2013-05-07
460	LI840	HGA-0418	profile_complex	Gas Analyser Li840-2	2013-02-25	2013-05-07
460	LI840	HGA-0418	profile_complex	Gas Analyser Li840-2	2013-02-25	2013-05-07
460	LI840	HGA-0418	profile_complex	Gas Analyser Li840-2	2013-02-25	2013-05-07
460	LI840	HGA-0418	profile_complex	Gas Analyser Li840-2	2013-02-25	2013-05-07
460	LI840	HGA-0418	profile_complex	Gas Analyser Li840-2	2013-02-25	2013-05-07

Table 2.93 Position of deployments

Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
49	32.0	0.0	0.0	0.0
54	35.0	62.0
234	32.0	0.0	0.0	0.0
235	35.0	247.0
339	36.0	330.0
339	36.0	327.0
459	24.0
459	26.0
459	28.0
459	30.0
459	32.0
459	32.0
459	32.0
459	32.0
460	24.0
460	26.0
460	28.0
460	30.0
460	32.0
460	32.0
460	32.0
460	32.0

2.6.20.4. Photos

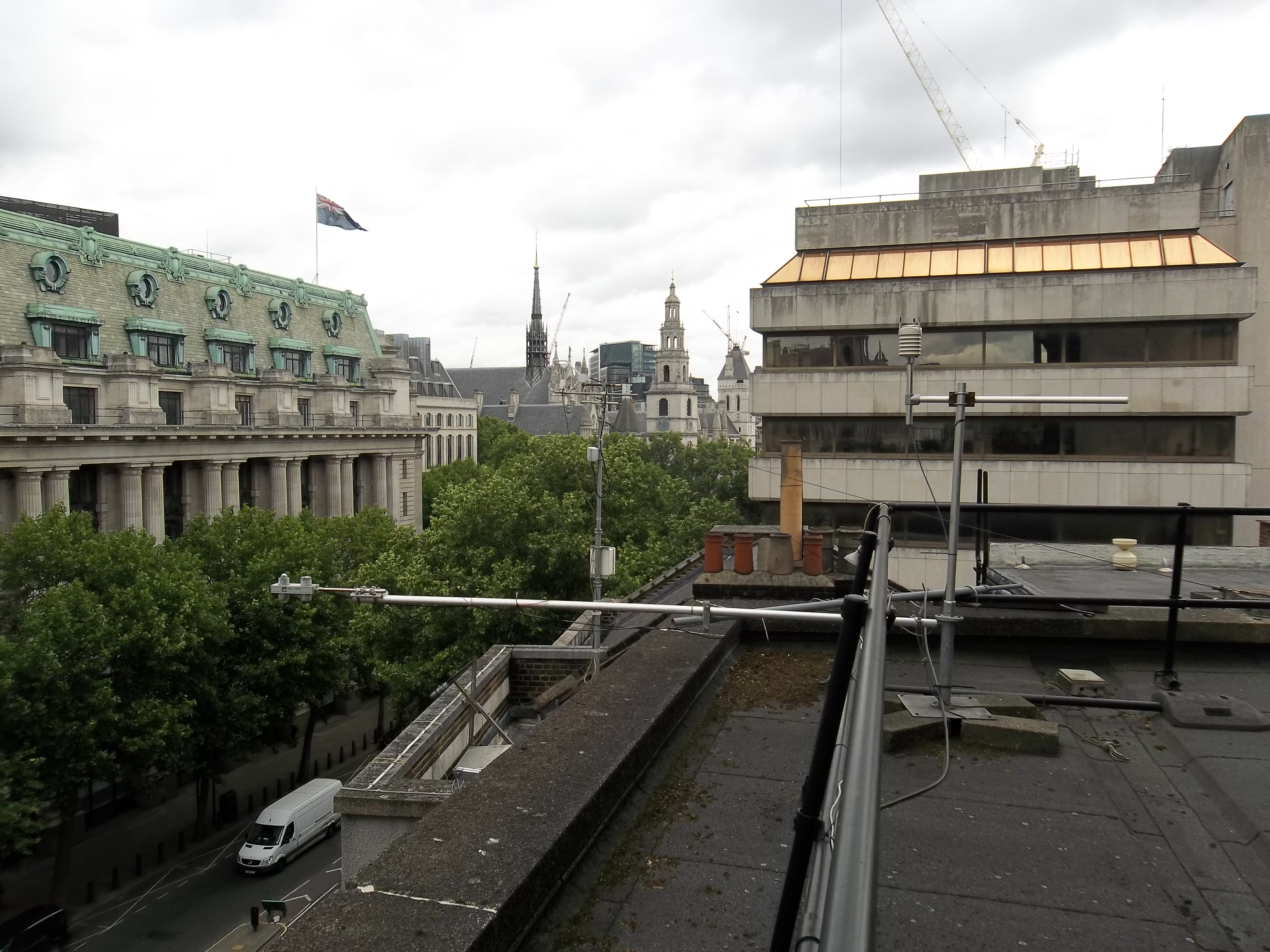

Fig. 2.52 CNR1 and WXT510 looking towards the West 05-07-2015.

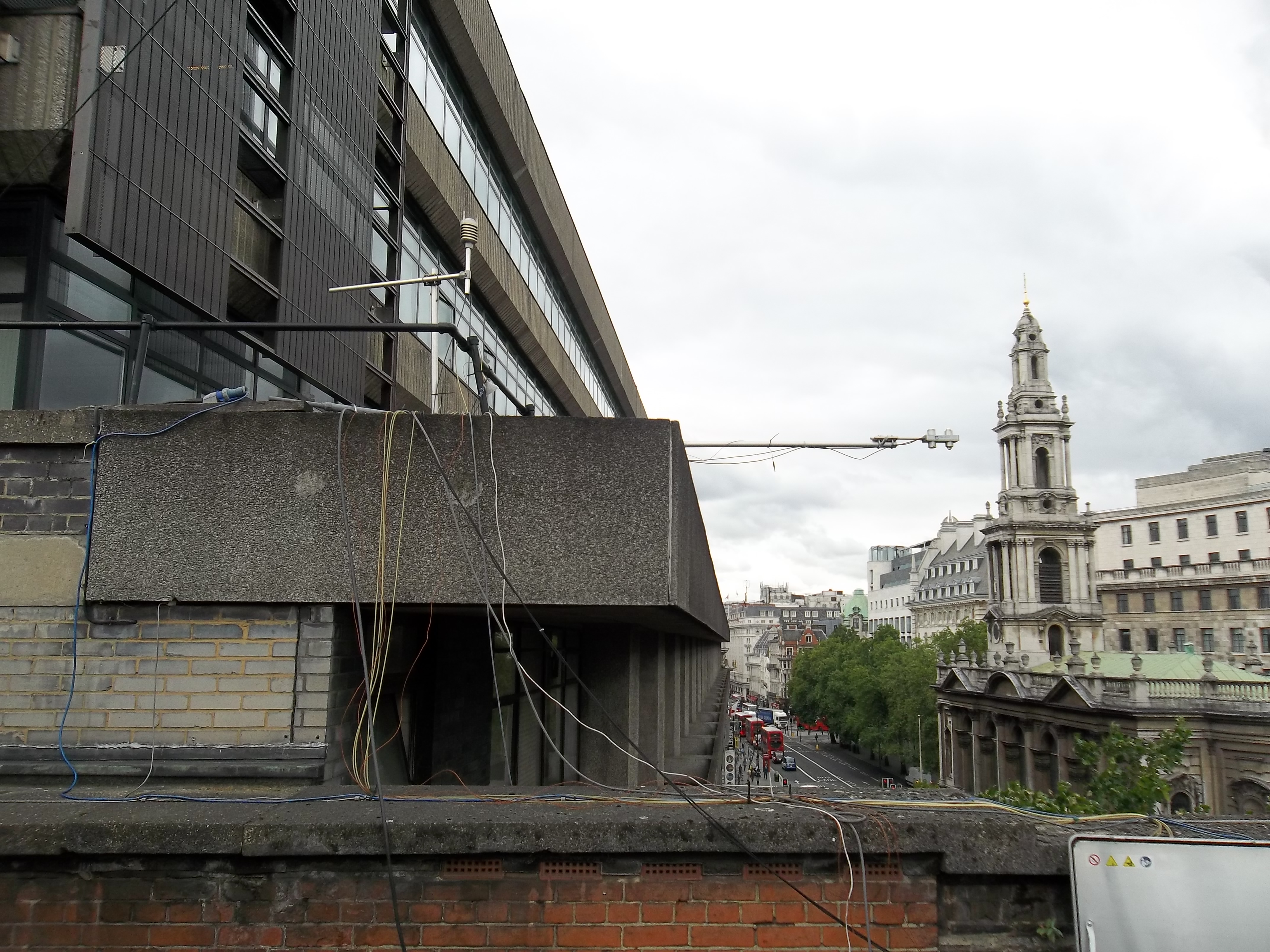

Fig. 2.53 LI7500A, CSAT3, CNR1 and WXT510 looking towards the East 05-07-2015.

Fig. 2.54 CSAT3 and LI7500A 05-07-2015.

Fig. 2.55 GILL121R03 18-02-2016.

Fig. 2.56 LI840 pipe coming down the side of the building 17-12-2015.

2.6.20.5. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

2.6.20.6. Data availability

Double click on legend to isolate instruments.

2.6.20.7. References

1. Warren, E., Charlton-Perez, C., Kotthaus, S., Lean, H., Ballard, S., Hopkin, E. and Grimmond, S. (2018) Evaluation of forward-modelled attenuated backscatter using an urban ceilometer network in London under clear-sky conditions. Atmospheric Environment, 191. pp. 532-547. ISSN 1352-2310 doi: https://doi.org/10.1016/j.atmosenv.2018.04.045

2. Bjorkegren, A. and Grimmond, C. S. B., (2017) Net carbon dioxide emissions from central London. Urban Climate, 23. pp. 131-158. ISSN 2212-0955 doi: https://doi.org/10.1016/j.uclim.2016.10.002

3. Bjorkeren, A. B., Grimmond, C. S. B., Kotthaus, S. and Malamud, B. D. (2015) CO2 emission estimation in the urban environment: measurement of the CO2 storage term. Atmospheric Environment, 122. pp. 775-790. ISSN 1352-2310 doi: https://doi.org/10.1016/j.atmosenv.2015.10.012

2.6.20.8. Acknowledgements

We thank King College London Directorate of Estates Facilities for site access.
