2.6.6. BTM

2.6.6.1. Introduction

Thomas More garden in the Barbican estate in the City of London. Soil moisture probes have been deployed here.

2.6.6.2. Site metadata

Site ID	BTM
Full Name	Barbican Thomas More Garden
Network	LUMA
Longitude	-0.095688	degrees
Latitude	51.519515	degrees
Start date	2015-11-01	UTC
End date	2016-06-07	UTC
Displacement height	-999.0	m
City	London

2.6.6.3. Deployments at site

Table 2.63 All site deployments

Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
94	SM300	A01365	single	SMP West	2015-11-02	2016-05-10
95	SM300	A01360	single	SMP East	2015-11-02	2016-06-07

Table 2.64 Position of deployments

Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
94	-0.2
95	-0.2

2.6.6.4. Photos

Fig. 2.17 SM300 node 02-02-2016.

Fig. 2.18 SM300 node 02-02-2016.

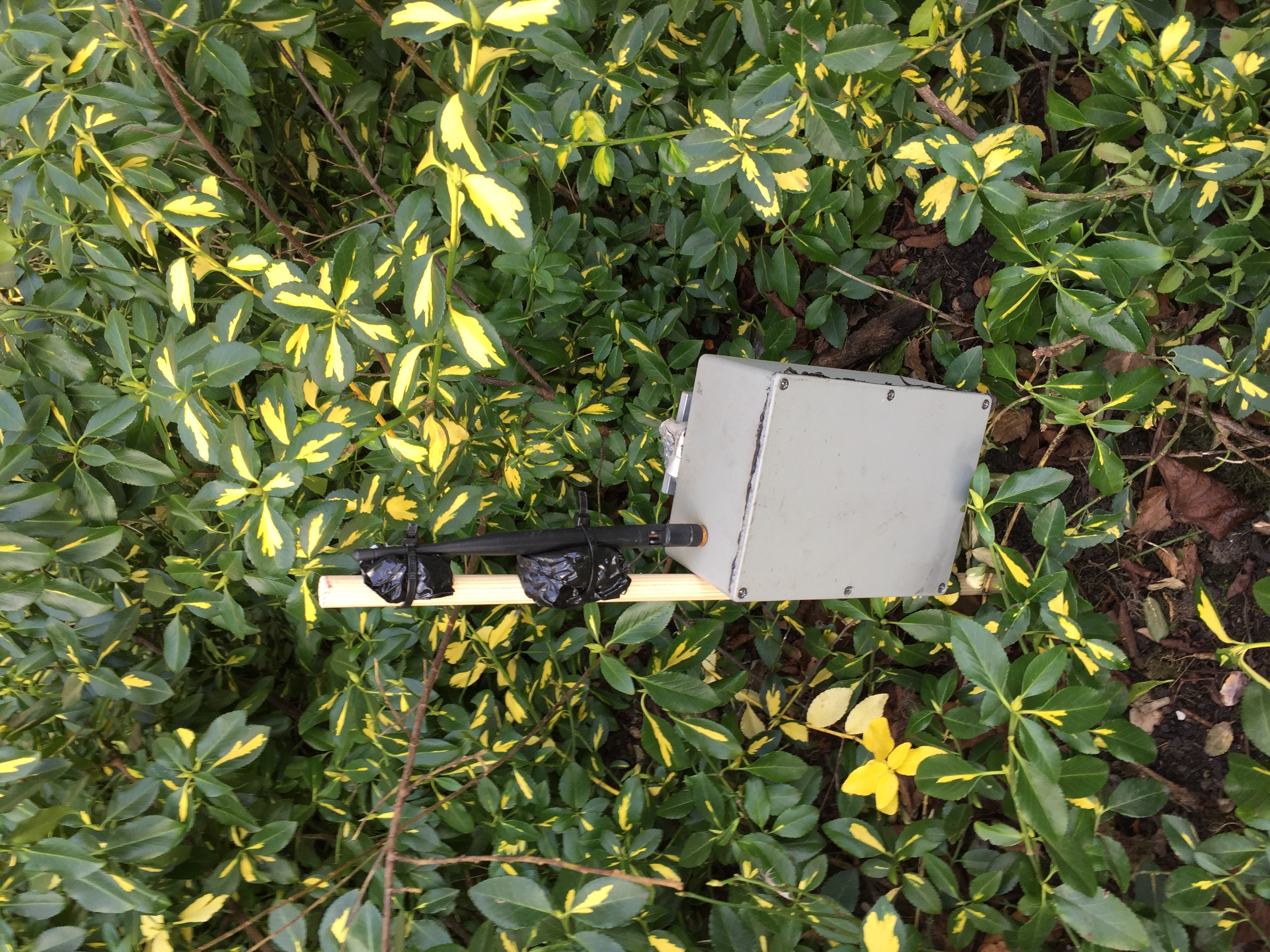

Fig. 2.19 SM300 node 02-10-2015.

2.6.6.5. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

2.6.6.6. Data availability

Double click on legend to isolate instruments.

2.6.6.7. Acknowledgements

We thank Barbican and Indoor site residents for site access.
