2.6.26. NDT¶

2.6.26.1. Introduction¶

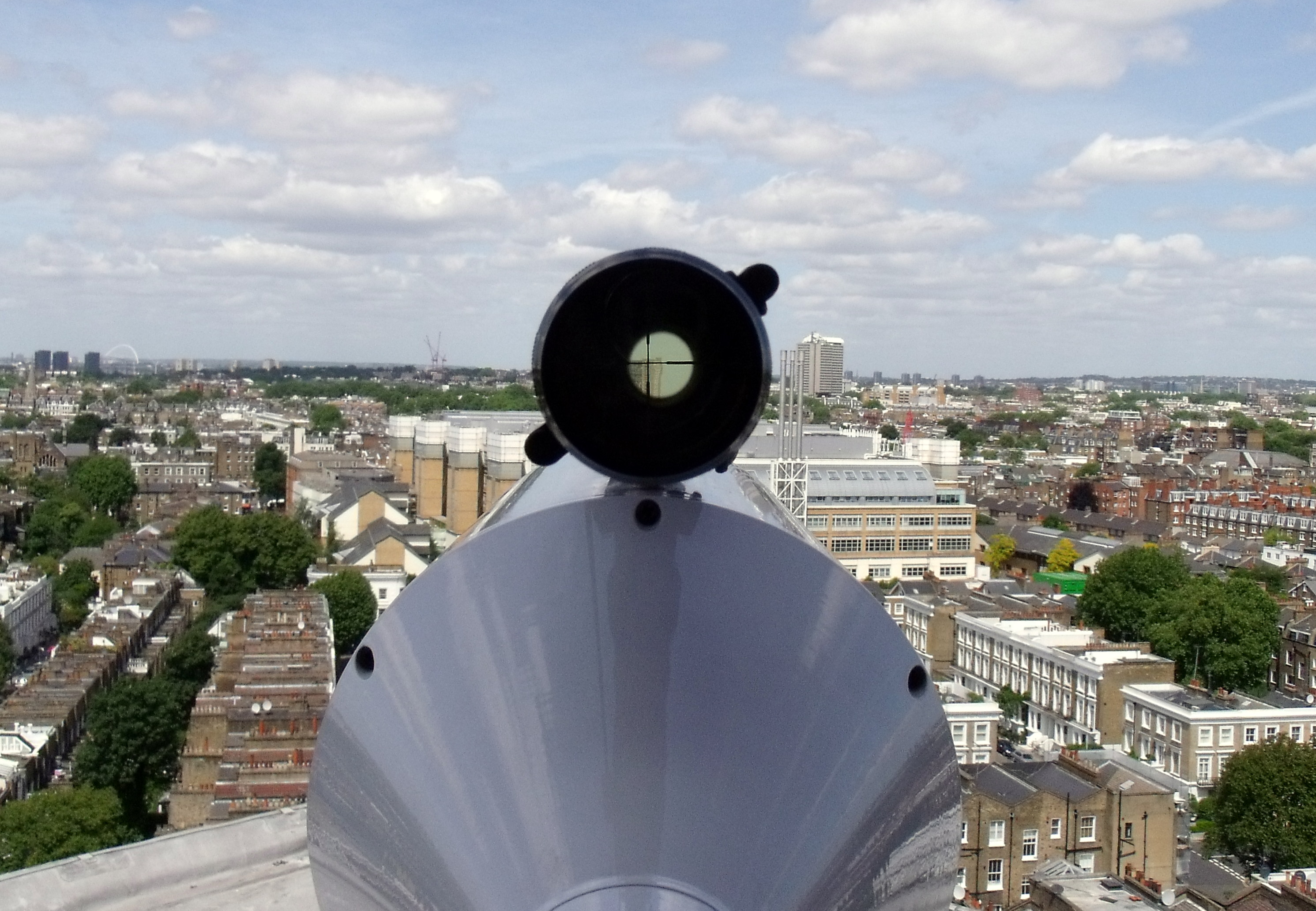

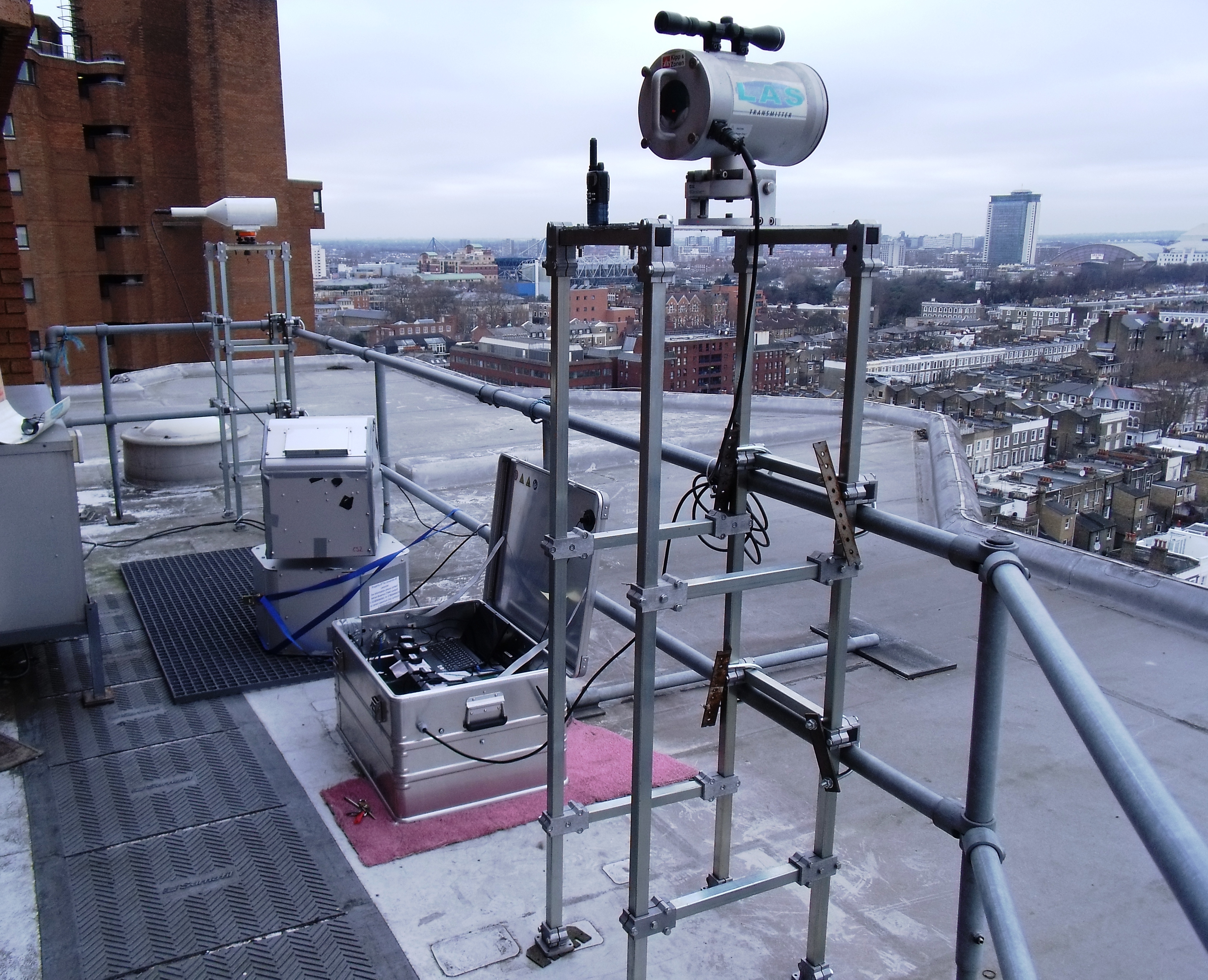

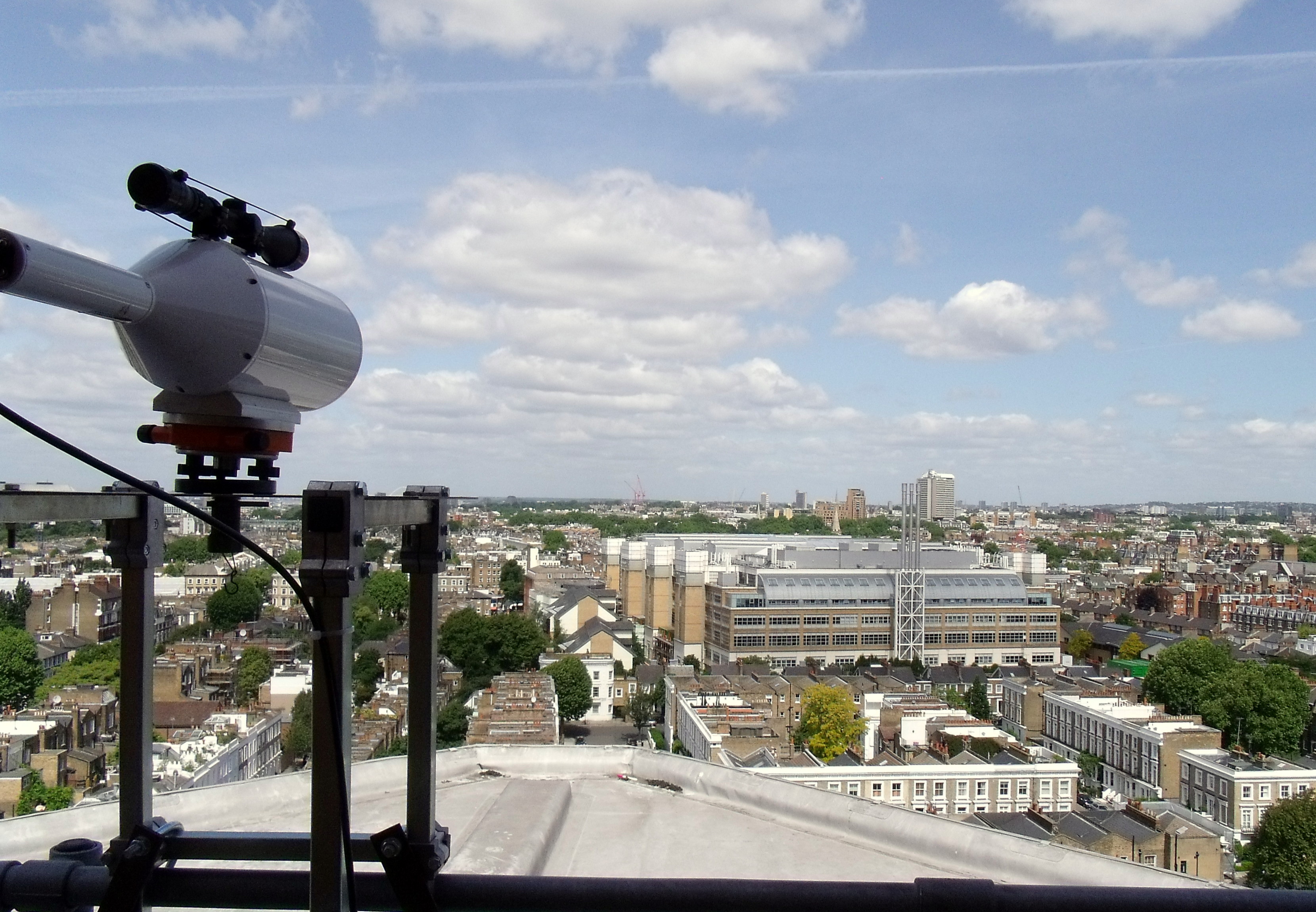

Dartrey Tower in the London borough of Chelsea and Kensington. Several Large Aperture Scintillometer and weather stations have been deployed here.

Site ID	NDT
Full Name	Dartrey Tower, Kings College London (North Kensington)
Network	LUMA
Longitude	-0.1796	degrees
Latitude	51.4814	degrees
Start date	2011-05-24	UTC
End date	2013-02-27	UTC
Displacement height	-999.0	m
City	London

Table 2.107 All site deployments¶
Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
10	DAVIS	A00422A002	single	Davis weather station	2011-09-02	2013-02-27
11	DAVIS	A00422A003	single	Davis weather station	2011-05-24	2011-09-01
236	WXT510	B0840003	single	WXT	2011-07-01	2011-11-15
351	BLS	T-E-0470	scintillometer	BLS_NTT_NDT	2011-05-20	2011-11-23
352	BLS	T-E-0470	scintillometer	BLS_NTT_NDT	2012-01-11	2012-03-08
353	BLS	T-E-0470	scintillometer	BLS_NGT_NDT	2012-03-29	2012-09-21
357	LASMKII	120028	scintillometer	LAS_MKII_28_NGT_NDT	2012-09-21	2013-02-26

Table 2.108 Position of deployments¶
Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
10	61.5	339.0
11	61.5	339.0
236	61.5	339.0	0.0	0.0
351	56.0	339.0	0.637527115925
352	56.0	339.0	0.69444383378
353	56.0	325.0	0.29812133424
357	56.0	325.0	0.29812133424

Table 2.109 Metadata specific to scintillometers¶
Deployment ID	Target distance	Target site	Target height
	m		m asl
351	5032.61924896	NTT	112.0
352	5032.61924896	NTT	117.0
353	4420.3177868	NGT	79.0
357	4420.3177868	NGT	79.0

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

Double click on legend to isolate instruments.

We thank Adrian Bowmann at Royal Borough of Kensington and Chelsea for site access.
