2.6.13. IML

2.6.13.1. Introduction

Lower roof of Michael Cliffe House in Islington, London. It is the same building as IMU but on a lower roof. Two DAVIS stations have been deployed here.

2.6.13.2. Site metadata

Site ID	IML
Full Name	Islington Michael Cliffe, Lower Level
Network	LUMA
Longitude	-0.106186	degrees
Latitude	51.526055	degrees
Start date	2013-08-01	UTC
End date	2018-10-31	UTC
Displacement height	-999.0	m
City	London

2.6.13.3. Deployments at site

Table 2.79 All site deployments

Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
14	DAVIS	A00422A002	single	Davis weather station	2013-07-19	2014-07-31
15	DAVIS	A00422A002	single	Davis weather station	2014-08-01	2017-11-29
445	DAVIS	AZ170310004	single	Davis weather station	2017-11-29	2018-10-31

Table 2.80 Position of deployments

Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
14	25.5	338.0
15	25.5	338.0	0.0	0.0
445	25.5	338.0	0.0	0.0

2.6.13.4. Photos

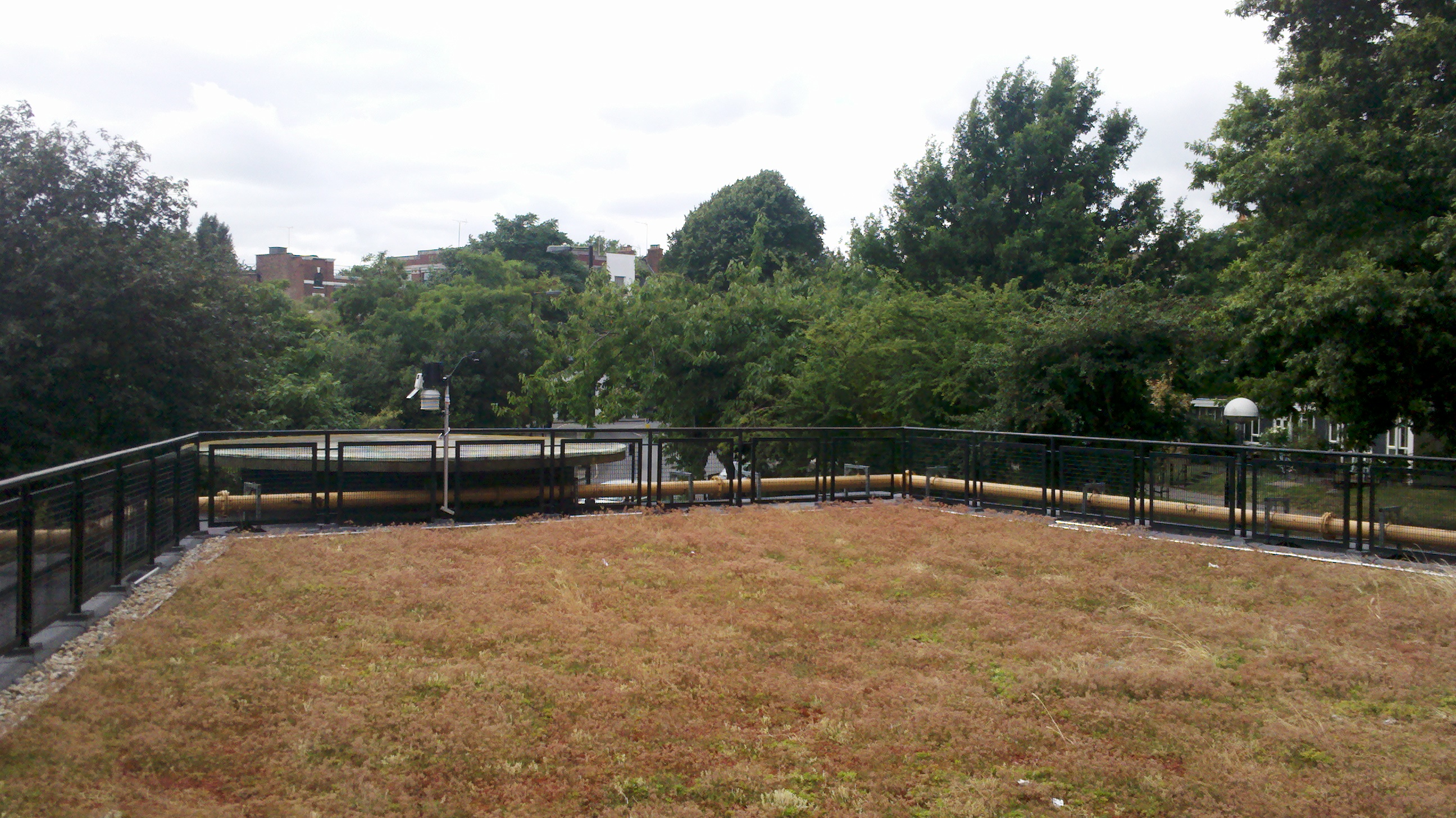

Fig. 2.34 DAVIS station looking East 31-07-2013.

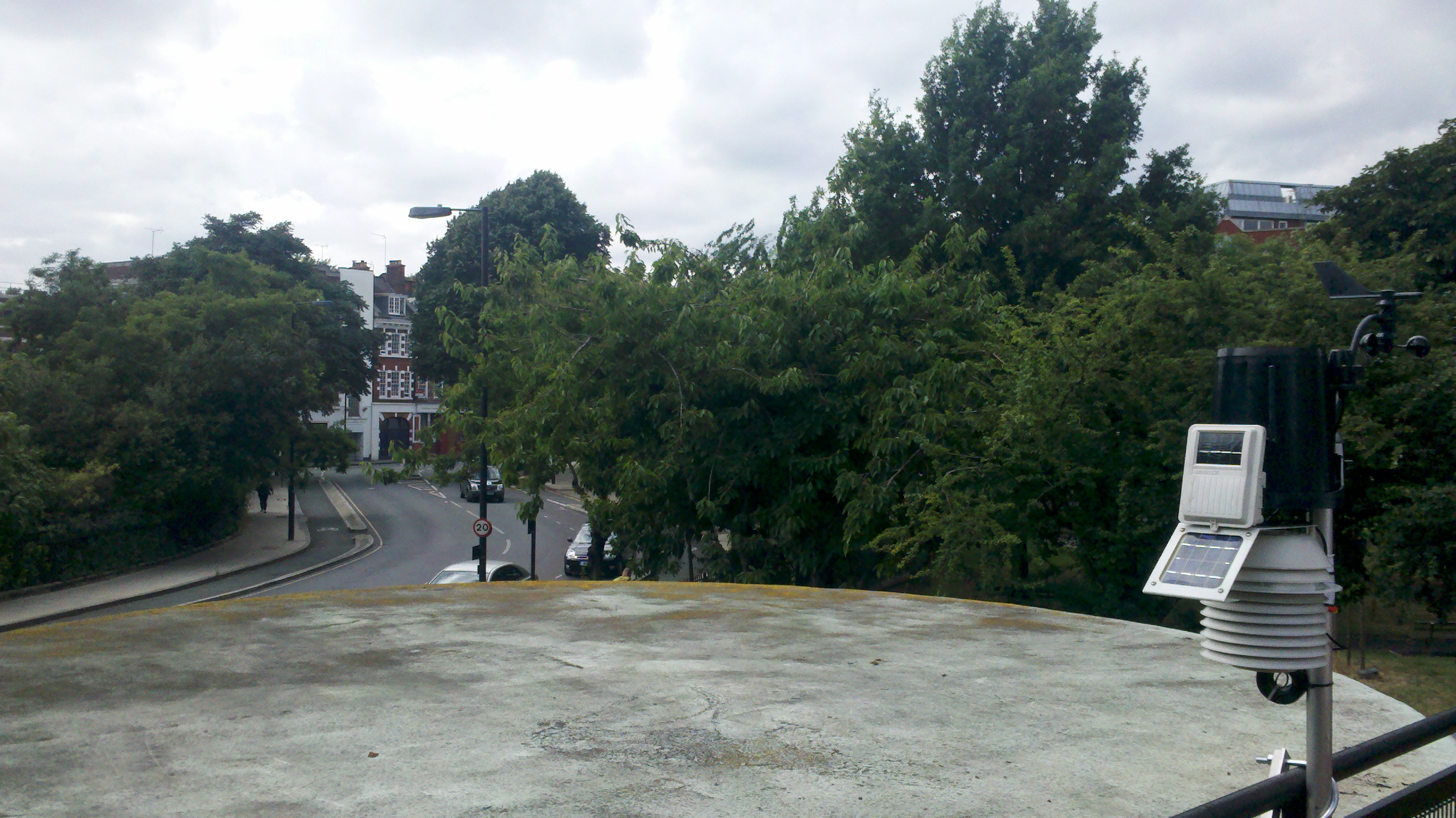

Fig. 2.35 Wider view of DAVIS station looking East 31-07-2013.

2.6.13.5. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

2.6.13.6. Data availability

Double click on legend to isolate instruments.

2.6.13.7. References

1. Warren, E., Charlton-Perez, C., Kotthaus, S., Lean, H., Ballard, S., Hopkin, E. and Grimmond, S. (2018) Evaluation of forward-modelled attenuated backscatter using an urban ceilometer network in London under clear-sky conditions. Atmospheric Environment, 191. pp. 532-547. ISSN 1352-2310 doi: https://doi.org/10.1016/j.atmosenv.2018.04.045

2.6.13.8. Acknowledgements

We thank Borough of Islington for site access.
