2.6.29. NTT

2.6.29.1. Introduction

Trellick Tower in the London borough of Chelsea and Kensington. Several Large Aperture Scintillometer have been deployed here.

2.6.29.2. Site metadata

Site ID	NTT
Full Name	North Kensington Trellick Tower
Network	LUMA
Longitude	-0.205439	degrees
Latitude	51.523705	degrees
Start date	2011-06-03	UTC
End date	2013-02-26	UTC
Displacement height	-999.0	m
City	London

2.6.29.3. Deployments at site

Table 2.116 All site deployments

Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
355	LASMKII	120029	scintillometer	LAS_MKII_29_NGT_NTT	2012-02-01	2013-02-26
359	LAS150	60029	scintillometer	LAS150_NDT_NTT	2011-10-12	2011-11-03

Table 2.117 Position of deployments

Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
355	117.0	213.0	-1.83613641371
359	112.0	159.0	-0.637527115925

Table 2.118 Metadata specific to scintillometers

Deployment ID	Target distance	Target site	Target height
	m		m asl
355	1278.9478569	NGT	76.0
359	5032.61924896	NDT	56.0

2.6.29.4. Photos

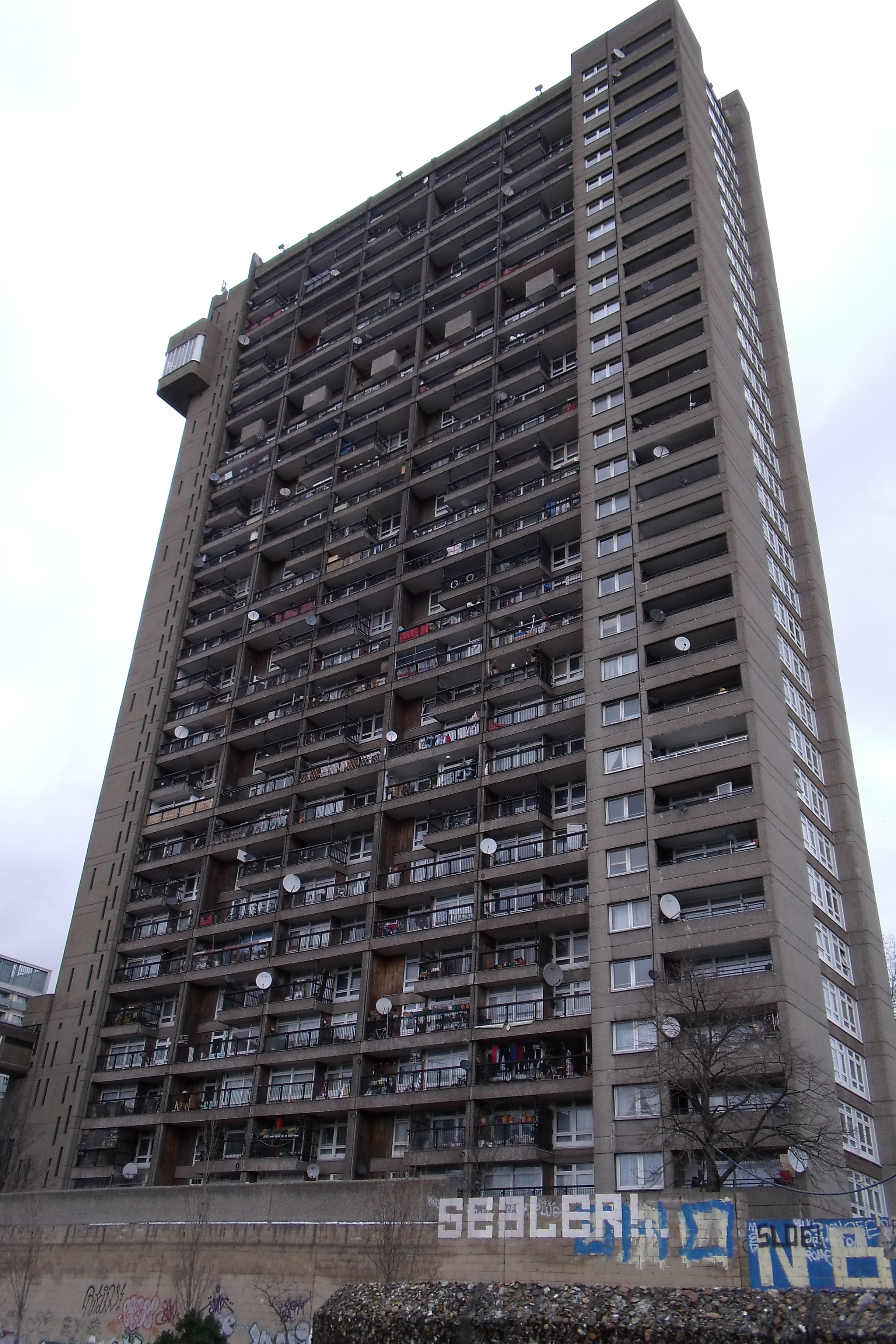

Fig. 2.85 View of tower from the ground 04-02-2011.

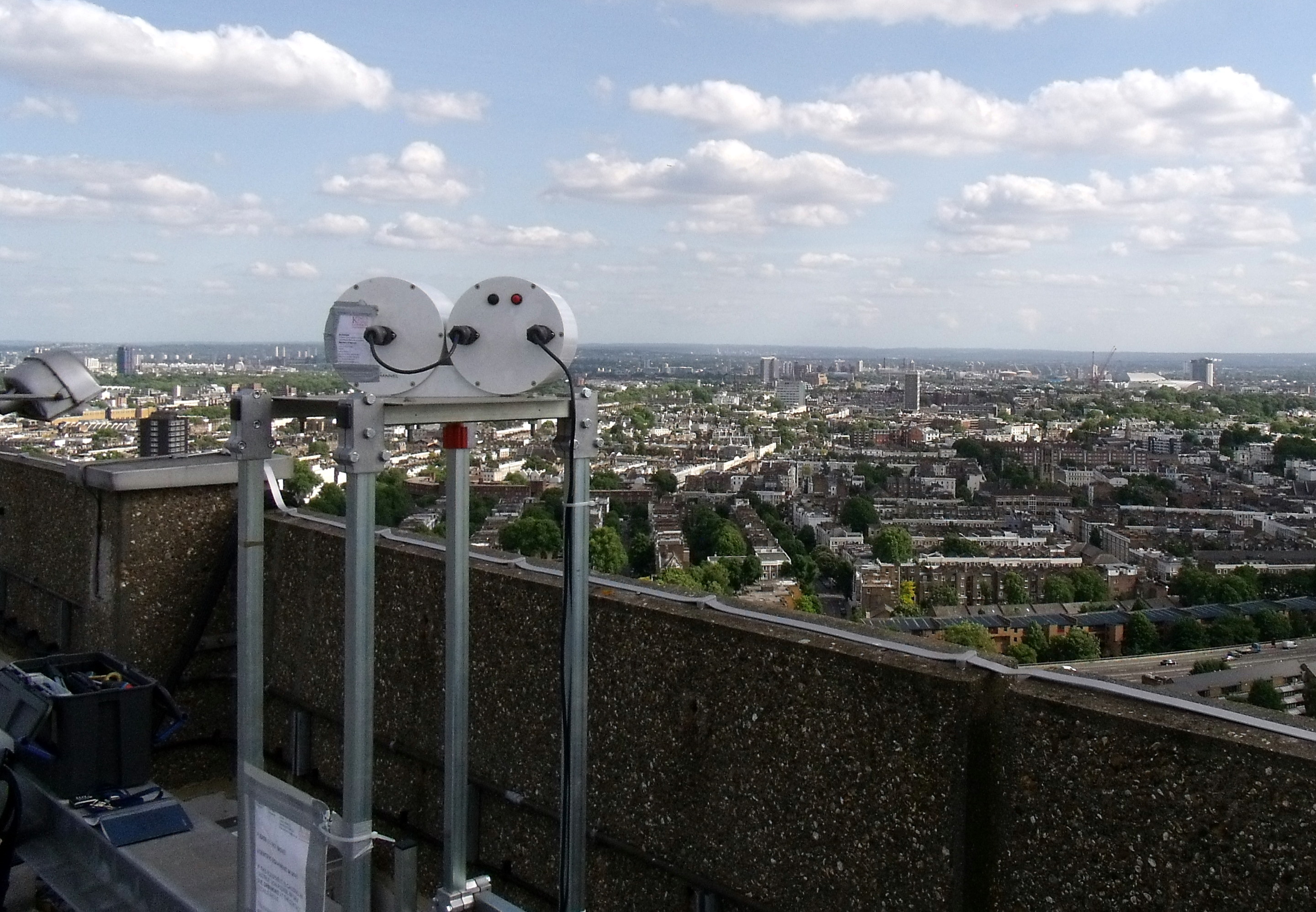

Fig. 2.86 BLS transmitter to NDT 24-05-2011.

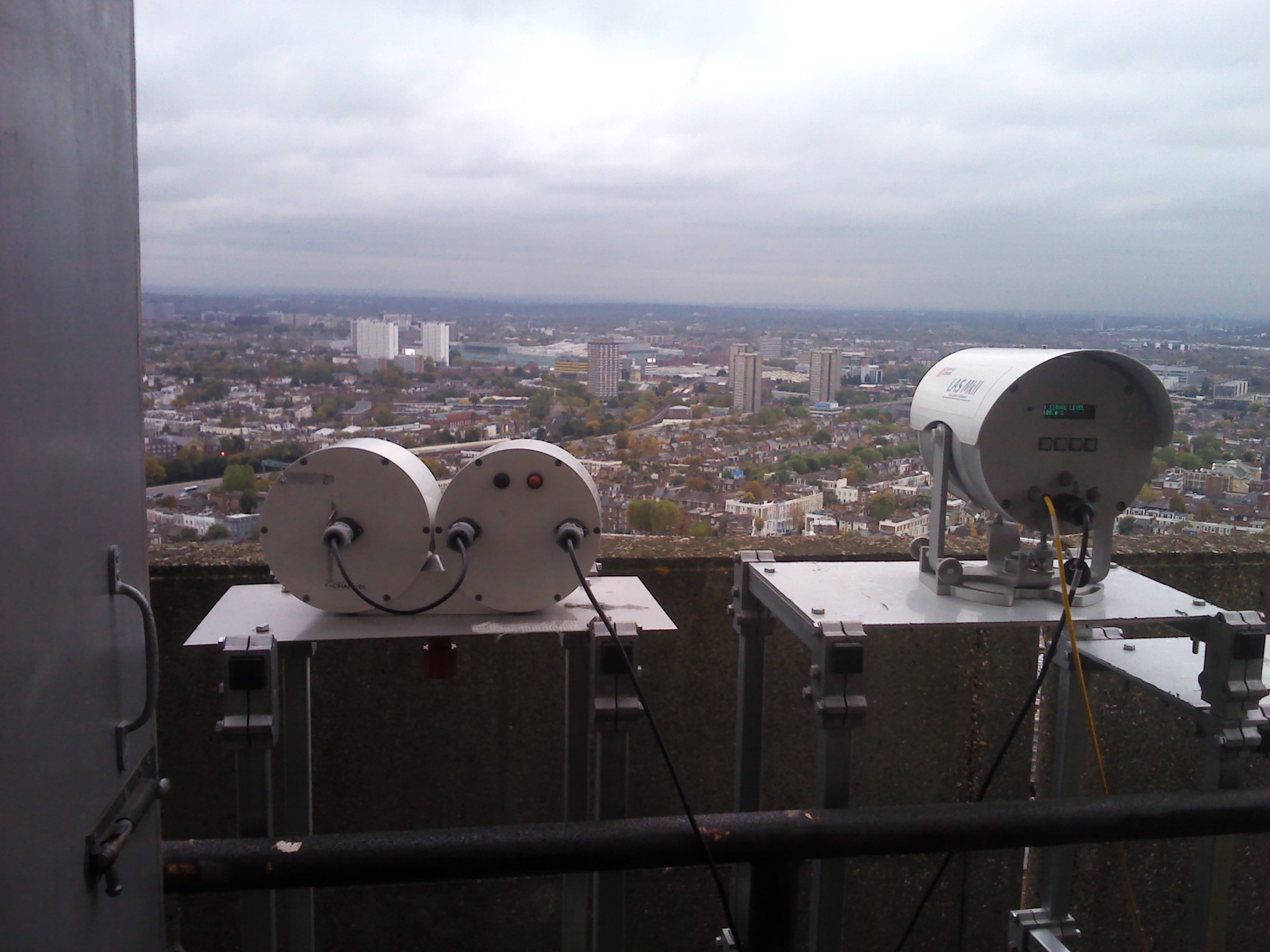

Fig. 2.87 BLS transmitter to NGT and LASMKII reciever from NGT 25-10-2012.

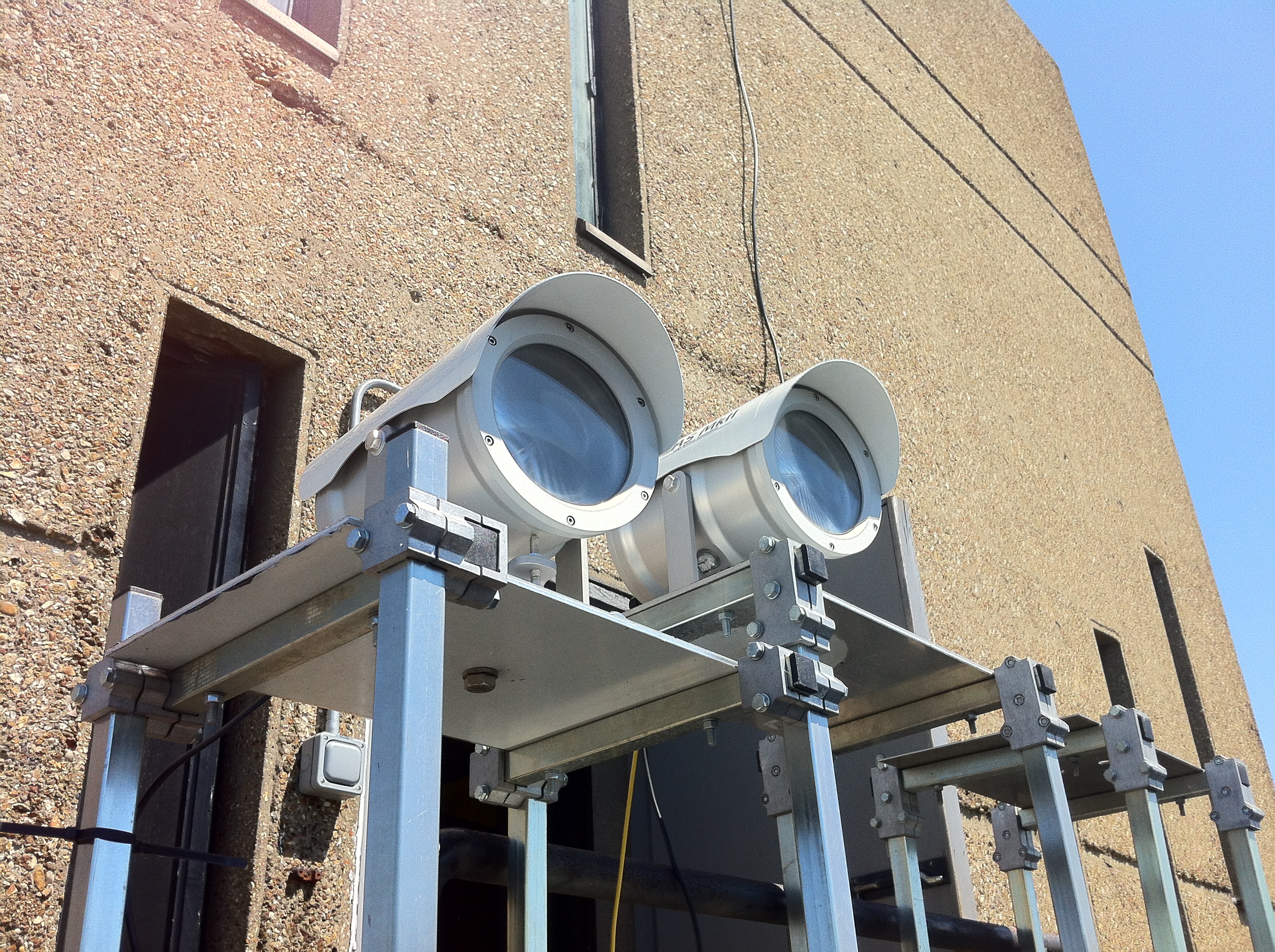

Fig. 2.88 LASMKII transmitter to NGT and LASMKII reciever from NGT 25-05-2012.

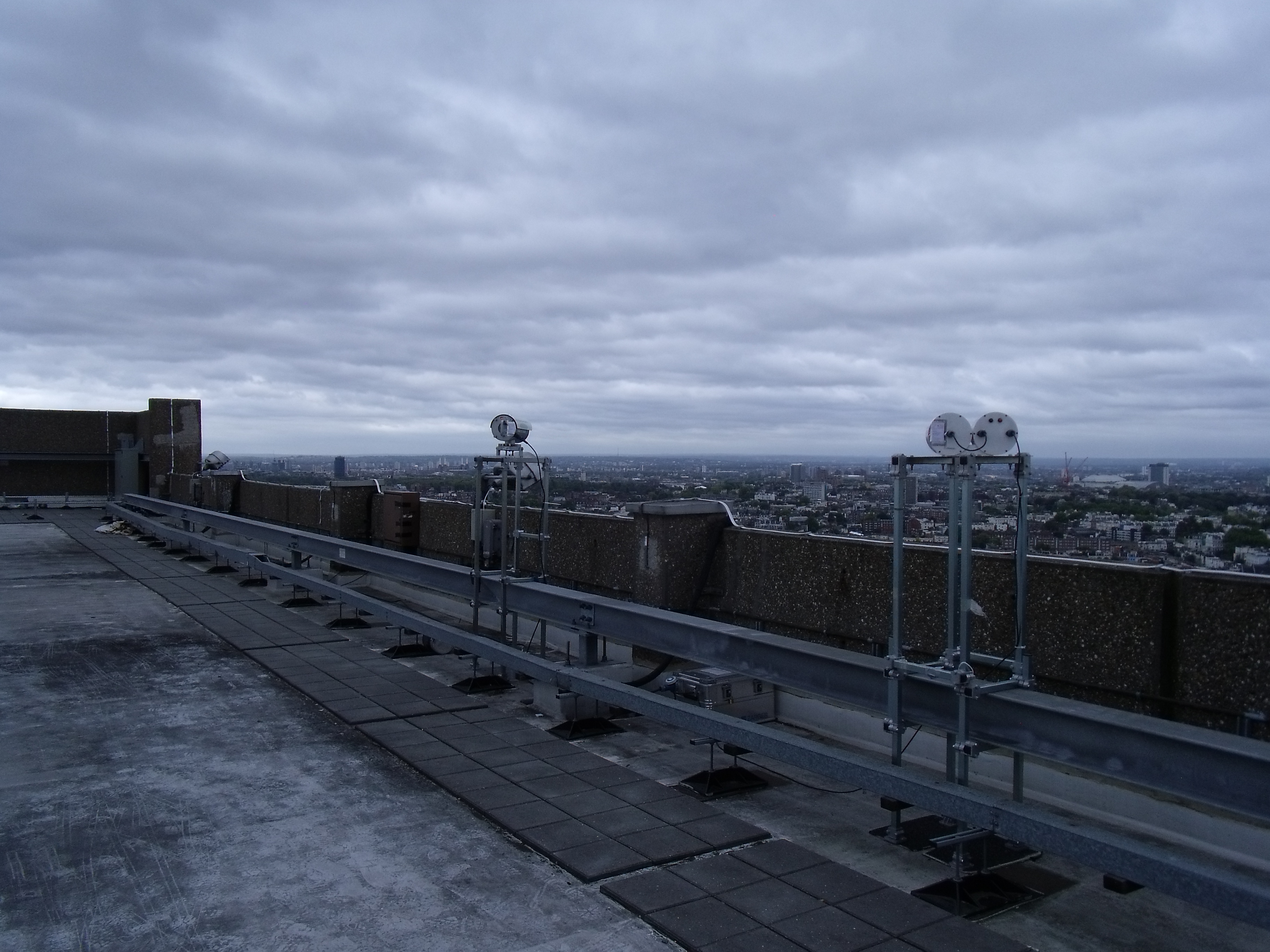

Fig. 2.89 BLS transmitter to NDT and LAS150 reciever from NDT 05-10-2011.

2.6.29.5. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

2.6.29.6. Data availability

Double click on legend to isolate instruments.

2.6.29.7. Acknowledgements

We thank Adrian Bowmann at Royal Borough of Kensington and Chelsea for site access.
