2.6.3. BCTW

2.6.3.1. Introduction

Cromwell tower in the Barbican estate in the City of London. An LASMKII reciever and a Davis weather station have been deployed here. This is the same roof as BCT, but is slightly to the west.

2.6.3.2. Site metadata

Site ID	BCTW
Full Name	Barbican Cromwell Tower West
Network	LUMA
Longitude	-0.092969	degrees
Latitude	51.520551	degrees
Start date	2014-01-22	UTC
End date	2014-03-20	UTC
Displacement height	-999.0	m
City	London

2.6.3.3. Deployments at site

Table 2.57 All site deployments

Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
2	DAVIS	AJ130401024	single	Davis weather station	2014-01-18	2014-03-20

Table 2.58 Position of deployments

Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
2	144.5	297.0

2.6.3.4. Photos

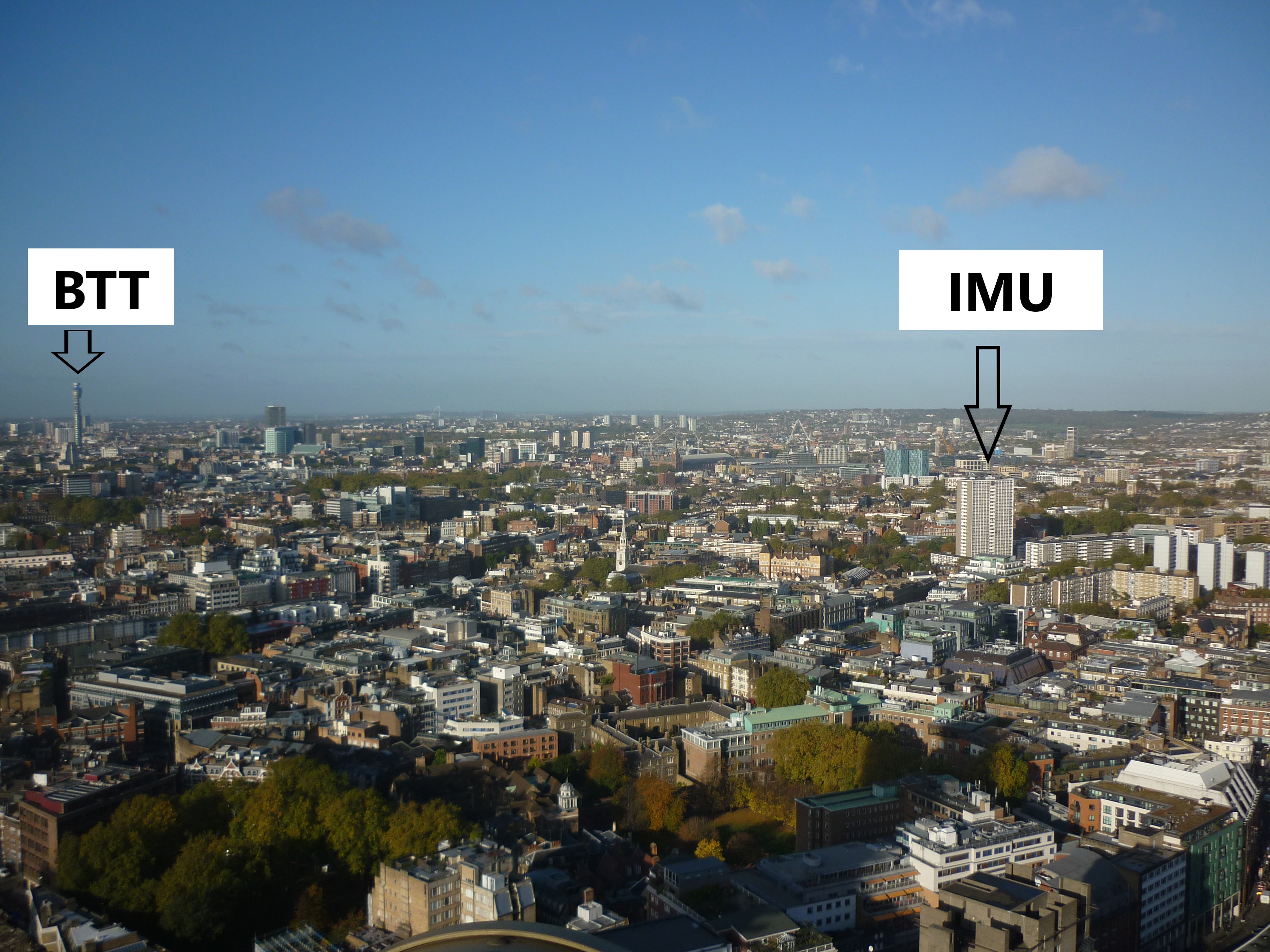

Fig. 2.9 View facing North West. The sites IMU and BTT are indicated. 14-11-2013.

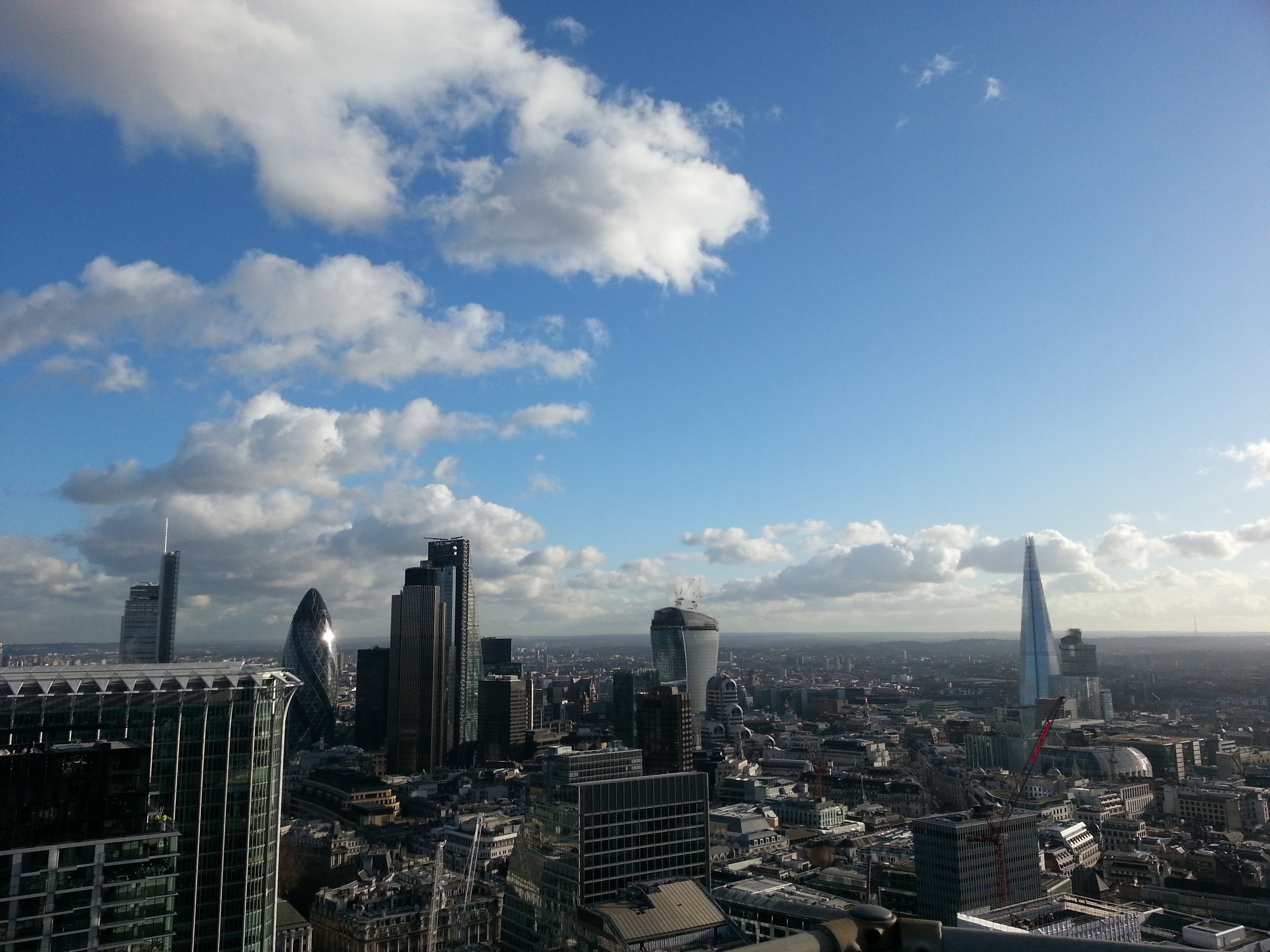

Fig. 2.10 View of City of London skyline looking towards the South East 23-01-2014.

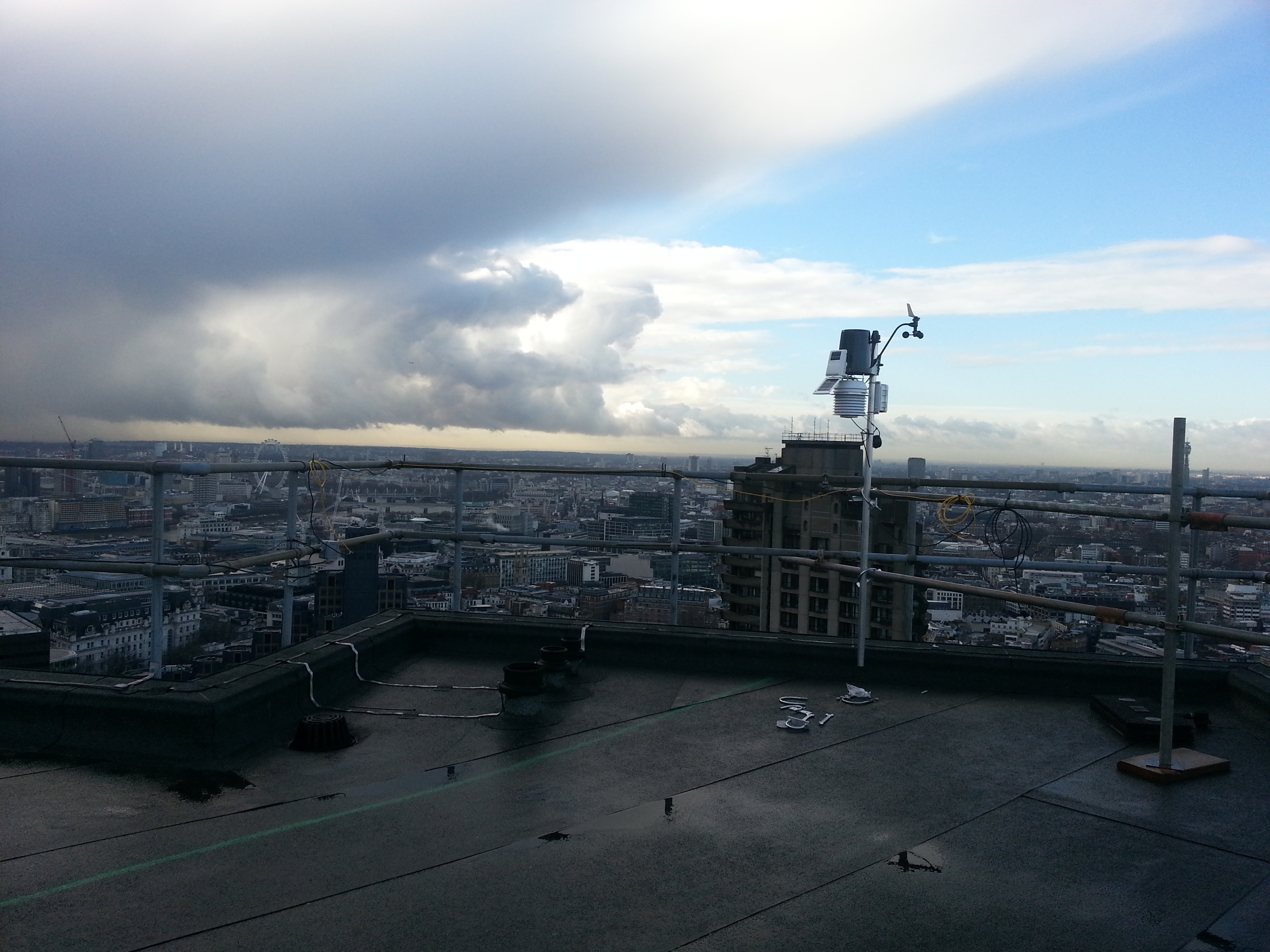

Fig. 2.11 DAVIS station looking towards the West 23-01-2014.

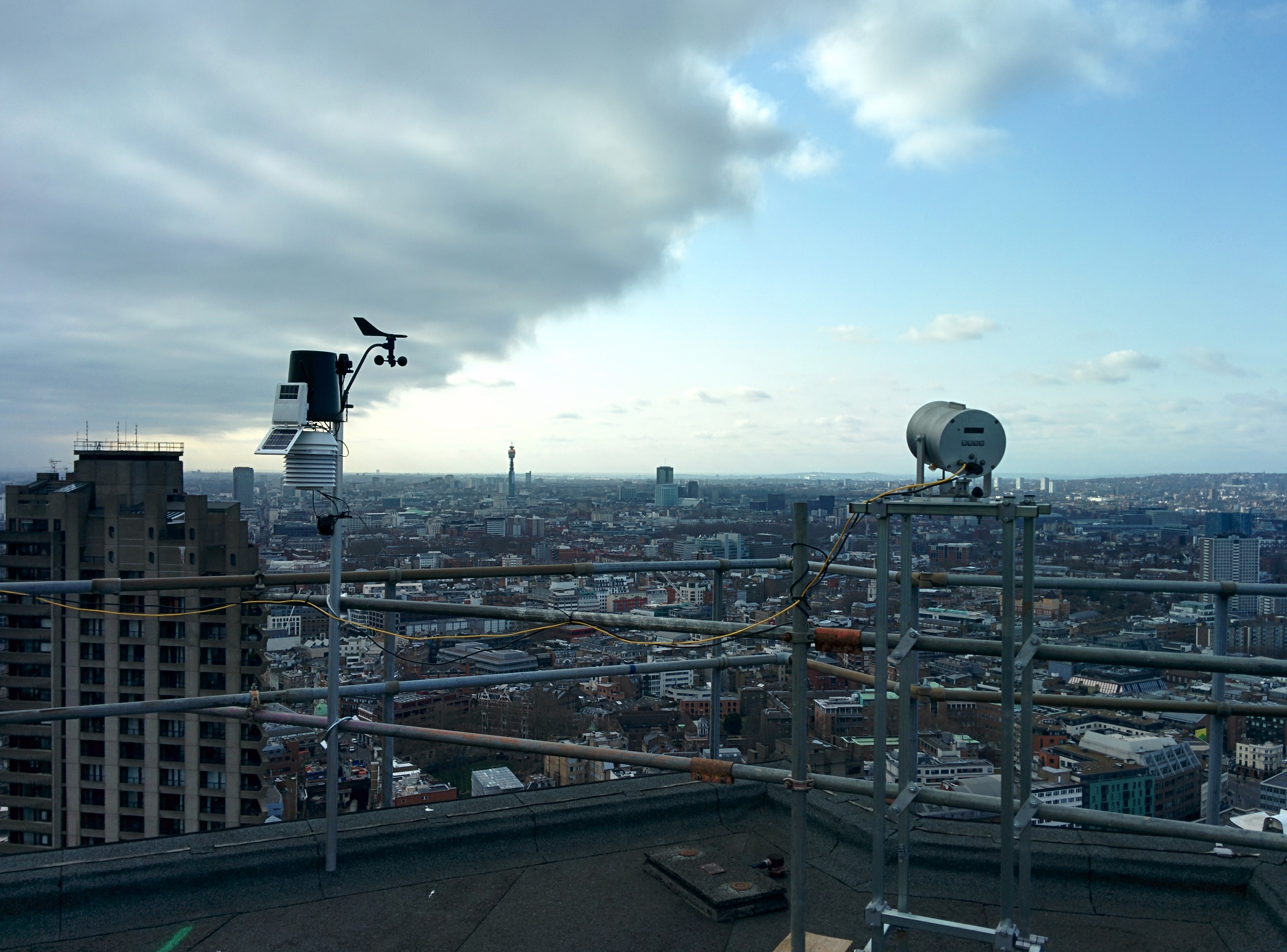

Fig. 2.12 DAVIS station and LASMKII receiver from BTT 10-03-2014.

2.6.3.5. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

2.6.3.6. Data availability

Double click on legend to isolate instruments.

2.6.3.7. Acknowledgements

We thank Barbican for site access.
