2.6.25. MT

2.6.25.1. Introduction

Middle Temple Gardens in the City of Westminster, London. Soil moisture probes have been deployed here.

2.6.25.2. Site metadata

Site ID	MT
Full Name	Middle Temple Gardens
Network	LUMA
Longitude	-0.1113	degrees
Latitude	51.5116	degrees
Start date	2011-06-12	UTC
End date	2016-02-12	UTC
Displacement height	-999.0	m
City	London

2.6.25.3. Deployments at site

Table 2.105 All site deployments

Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
73	SM300	A01362	single	SMP	2011-06-12	2012-12-06
271	SM300	A01362	single	SMP	2013-07-05	2016-02-12
74	SM300	A01361	single	SMP	2011-06-12	2012-12-06
270	SM300	A01361	single	SMP	2013-07-05	2016-02-12
75	SM300	A01364	single	SMP	2011-06-12	2012-04-25
77	SM300	A01364	single	SMP	2012-05-14	2012-11-11
273	SM300	A01364	single	SMP	2014-08-06	2016-02-12
76	SM300	A01363	single	SMP	2011-06-12	2012-04-25
78	SM300	A01363	single	SMP	2012-05-14	2012-11-11
272	SM300	A01363	single	SMP	2014-08-06	2016-02-12

Table 2.106 Position of deployments

Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
73	-0.05	0.0	0.0	0.0
271	-0.1	0.0	0.0	0.0
74	-0.12	0.0	0.0	0.0
270	-0.1	0.0	0.0	0.0
75	-0.2	0.0	0.0	0.0
77	-0.2	0.0	0.0	0.0
273	-0.2	0.0	0.0	0.0
76	-0.3	0.0	0.0	0.0
78	-0.3	0.0	0.0	0.0
272	-0.18	0.0	0.0	0.0

2.6.25.4. Photos

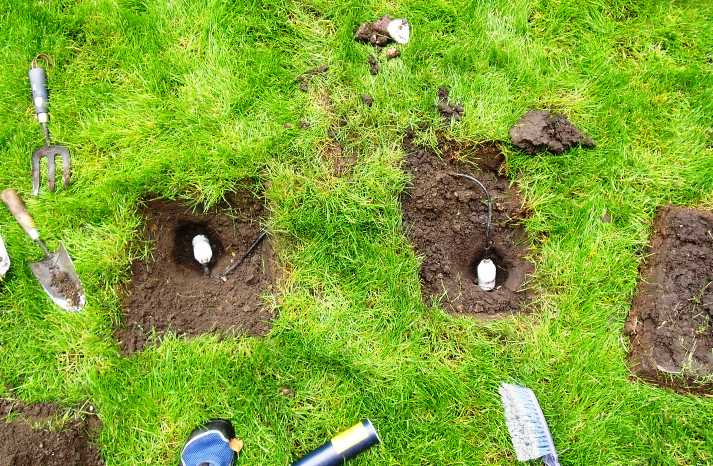

Fig. 2.72 SM300 13-06-2011.

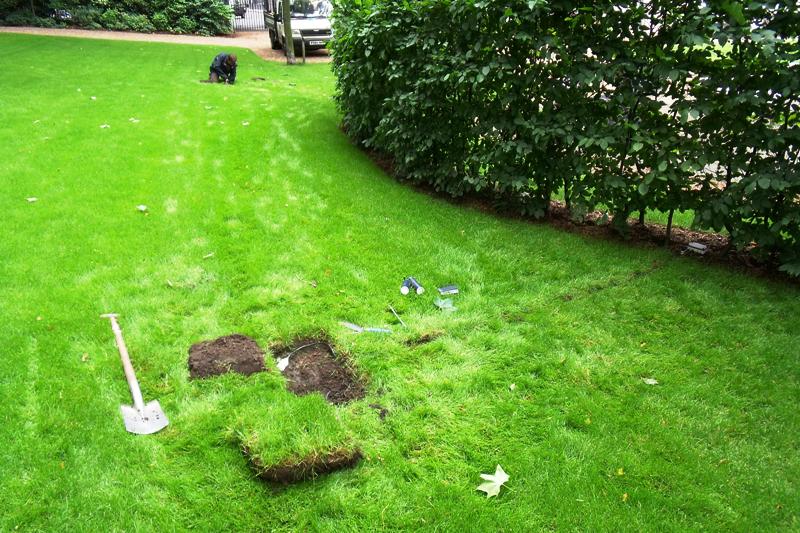

Fig. 2.73 Position of SM300 13-06-2011.

2.6.25.5. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

2.6.25.6. Data availability

Double click on legend to isolate instruments.

2.6.25.7. References

1. Magliulo, V., Toscano, P., Grimmond, C. S. B., Kotthaus, S., J�rvi, L., Set�l�, H., Lindberg, F., Vogt, R., Staszewski, T., Bubak, A., Synnefa, A. and Santamouris, M. (2014) Environmental measurements in BRIDGE case studies. In: Chrysoulakis, N., de Castro, E. A. and Moors, E. J. (eds.) Understanding Urban Metabolism. Routledge, pp. 45-57. ISBN 9780415835114
