2.6.4. BFCL

2.6.4.1. Introduction

Lower part of Frobisher cresent in the Barbican estate in the City of London. A Davis weather station and Soil moisture probes have been deployed here.

2.6.4.2. Site metadata

Site ID	BFCL
Full Name	Barbican Frobisher Cresent Lower
Network	LUMA
Longitude	-0.094398	degrees
Latitude	51.520532	degrees
Start date	2014-01-22	UTC
End date	2018-10-31	UTC
Displacement height	-999.0	m
City	London

2.6.4.3. Deployments at site

Table 2.59 All site deployments

Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
4	DAVIS	AK130521018	single	Davis weather station	2014-01-18	2018-10-31
288	SM300	A01358	single	Node 2	2016-01-01	2016-10-26

Table 2.60 Position of deployments

Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
4	21.0	252.0	0.0	0.0
288	-999.0	0.0	0.0	0.0

2.6.4.4. Photos

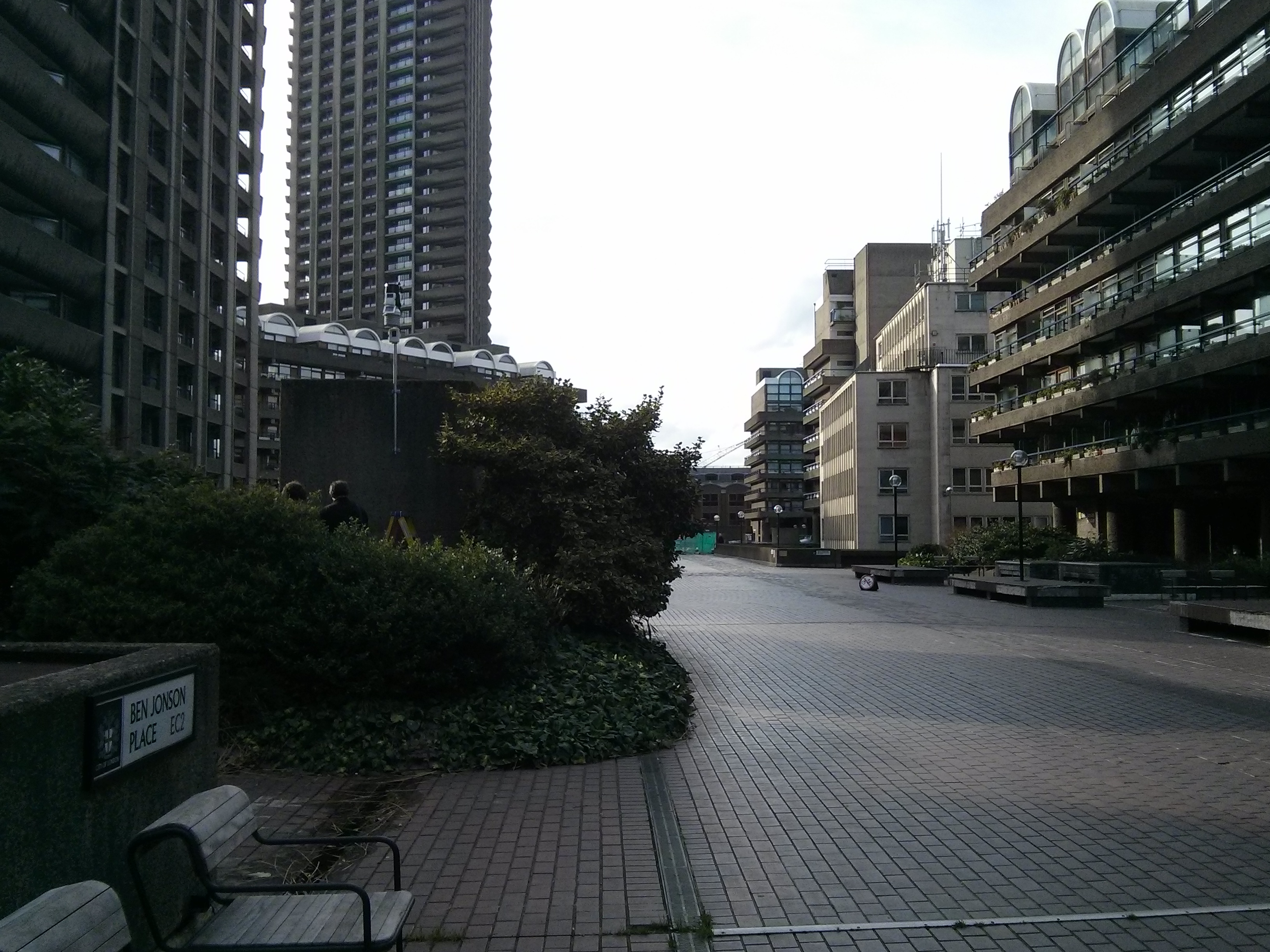

Fig. 2.13 DAVIS station looking towards the South East 03-02-2014.

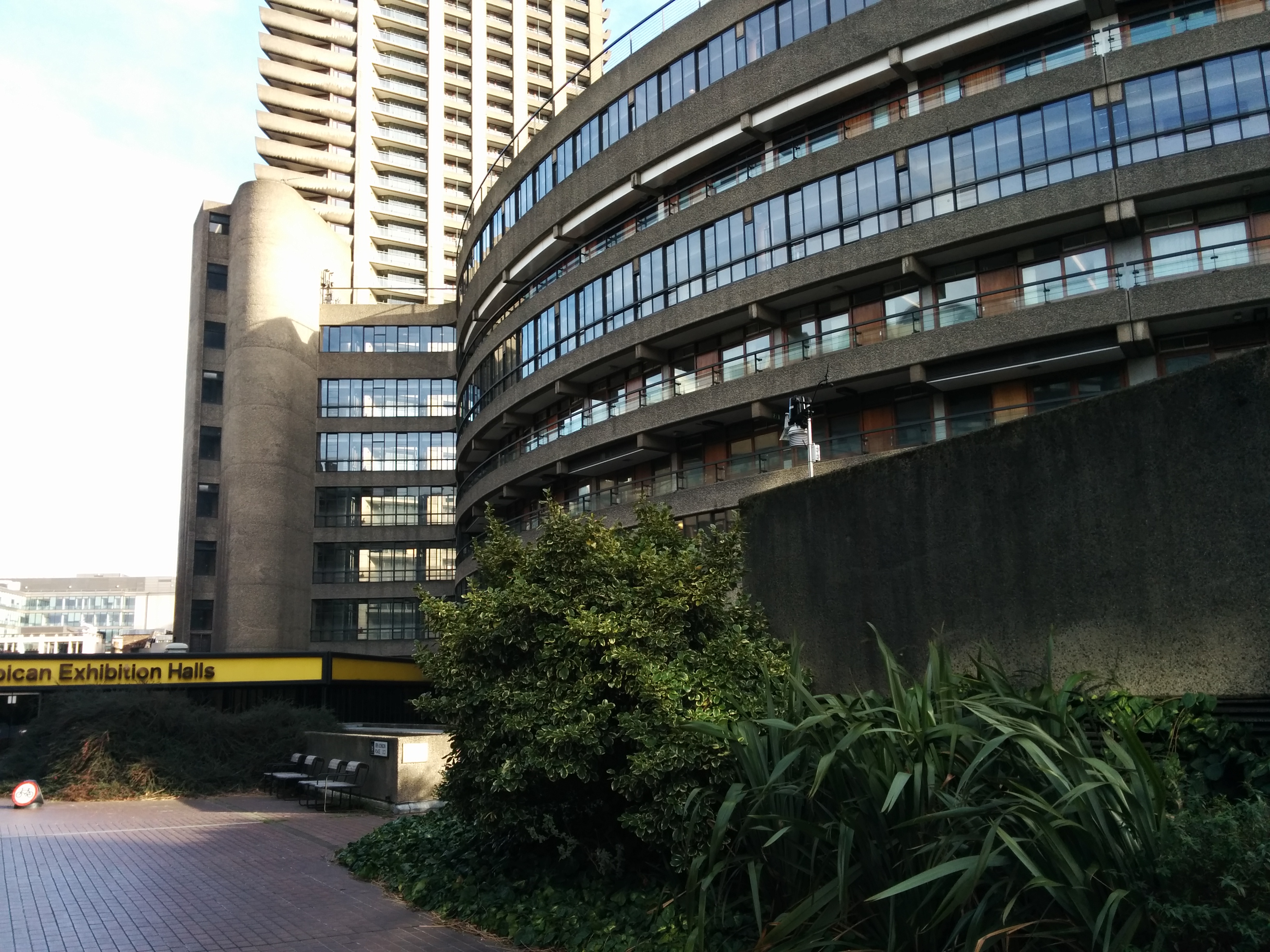

Fig. 2.14 DAVIS station seen looking towards the West 03-02-2014.

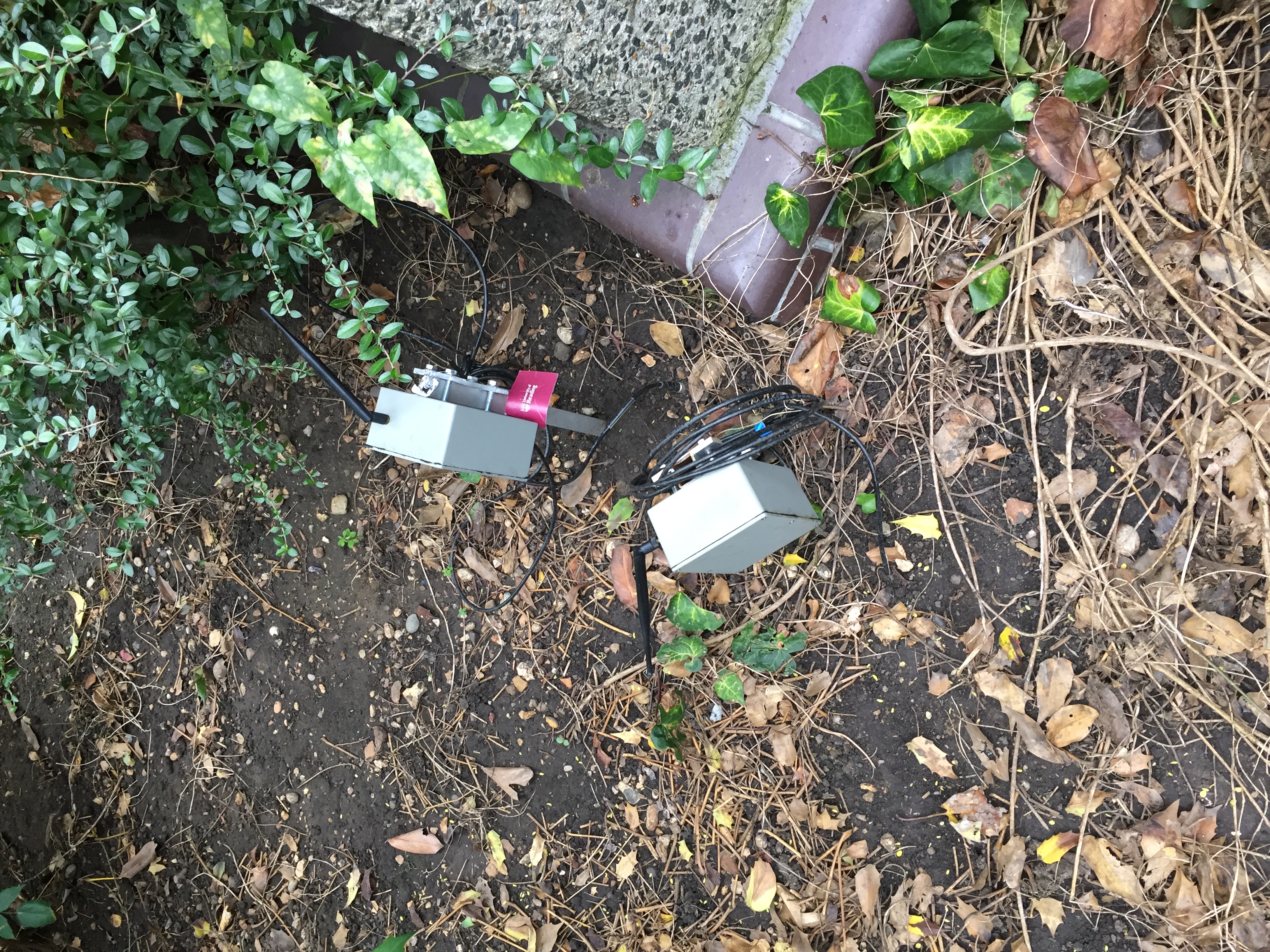

Fig. 2.15 SM300 nodes 22-10-2015.

2.6.4.5. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

2.6.4.6. Data availability

Double click on legend to isolate instruments.

2.6.4.7. References

1. Warren, E., Charlton-Perez, C., Kotthaus, S., Lean, H., Ballard, S., Hopkin, E. and Grimmond, S. (2018) Evaluation of forward-modelled attenuated backscatter using an urban ceilometer network in London under clear-sky conditions. Atmospheric Environment, 191. pp. 532-547. ISSN 1352-2310 doi: https://doi.org/10.1016/j.atmosenv.2018.04.045

2.6.4.8. Acknowledgements

We thank Barbican for site access.
