2.6.27. NGT

2.6.27.1. Site metadata

Site ID	NGT
Full Name	Grenfell Tower, Kings College London (North Kensington)
Network	LUMA
Longitude	-0.215762	degrees
Latitude	51.514164	degrees
Start date	2011-10-11	UTC
End date	2013-02-27	UTC
Displacement height	-999.0	m
City	London

2.6.27.2. Deployments at site

Table 2.110 All site deployments

Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
17	DAVIS	A00422A003	single	Davis weather station	2012-01-10	2013-02-27
354	BLS	T-E-0470	scintillometer	BLS_NTT_NGT	2012-09-21	2013-02-26
356	LASMKII	120028	scintillometer	LAS_MKII_28_NTT_NGT	2012-02-22	2012-09-21
360	LAS150	60029	scintillometer	LAS150_NDT_NGT	2012-01-11	2012-09-21

Table 2.111 Position of deployments

Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
17	79.5	32.0
354	76.0	33.0	1.83613641371
356	76.0	33.0	1.8361364137124
360	79.0	145.0	-0.29812133424

Table 2.112 Metadata specific to scintillometers

Deployment ID	Target distance	Target site	Target height
	m		m asl
354	1278.9478569	NTT	117.0
356	1278.9478568978	NTT	117.0
360	4420.3177868	NDT	56.0

2.6.27.3. Photos

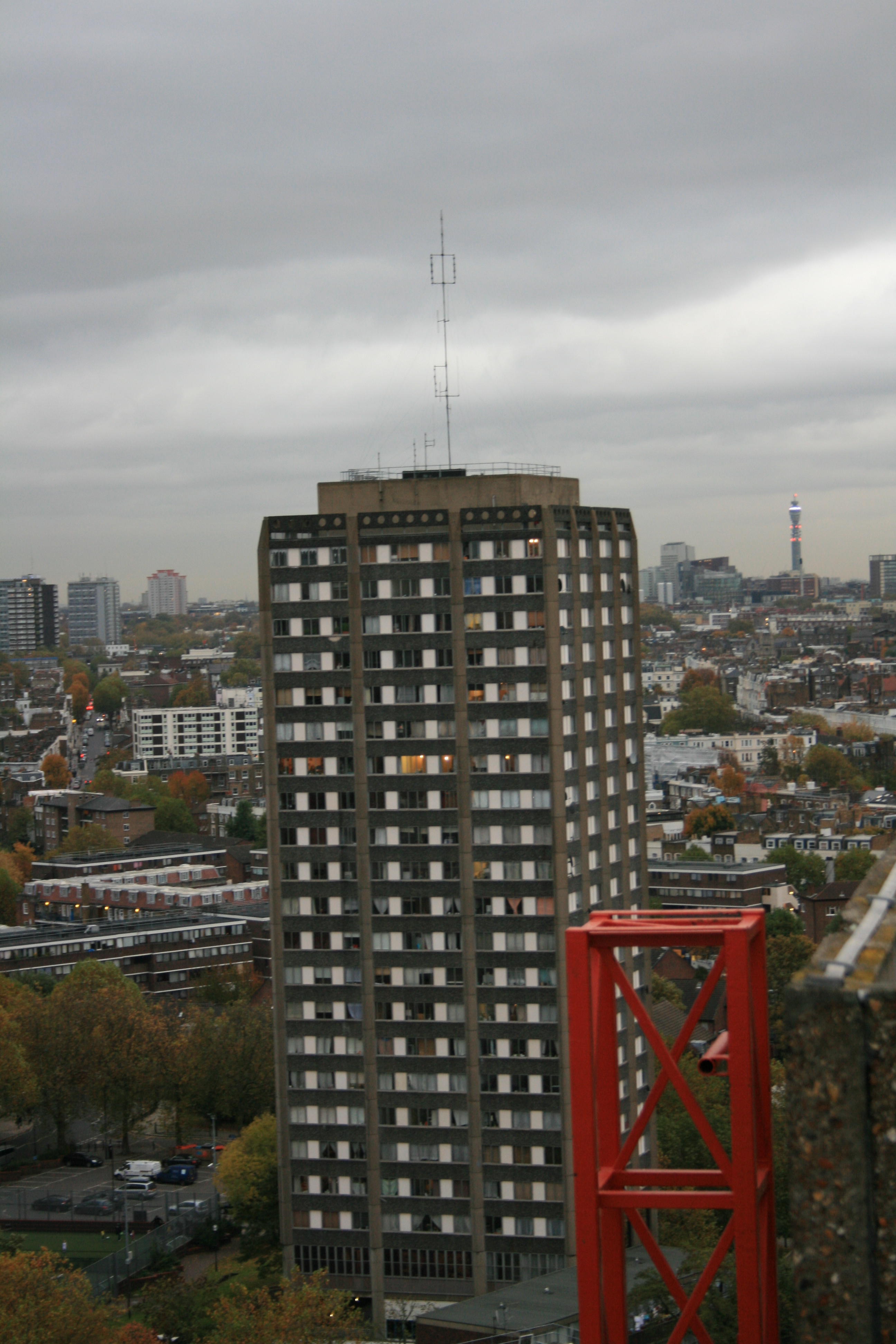

Fig. 2.79 View of tower. Unknown date between 11-10-2011 and 27-02-2013.

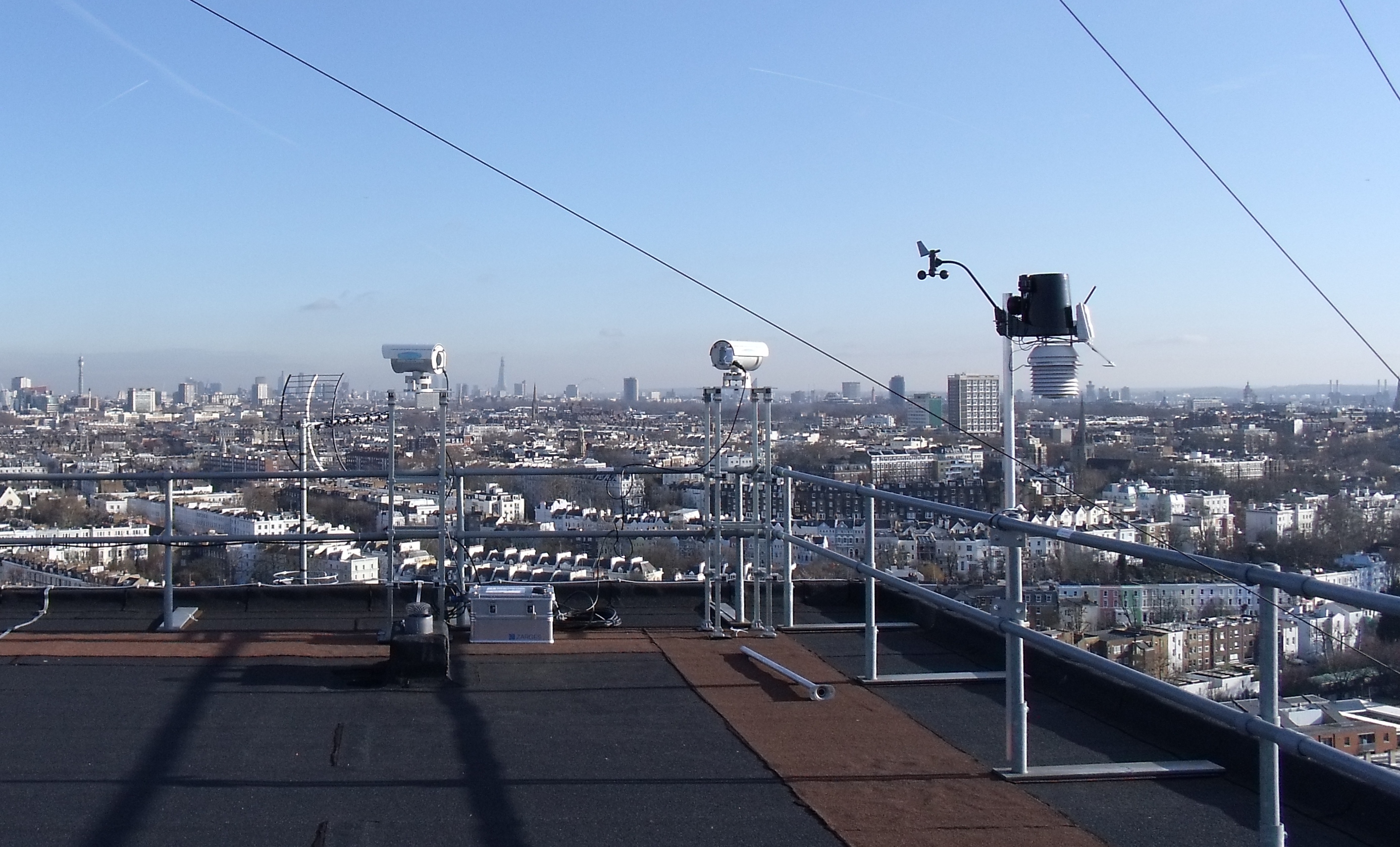

Fig. 2.80 DAVIS, LAS150 reciever from NDT and LASMKII transmitter to NTT 11-01-2012.

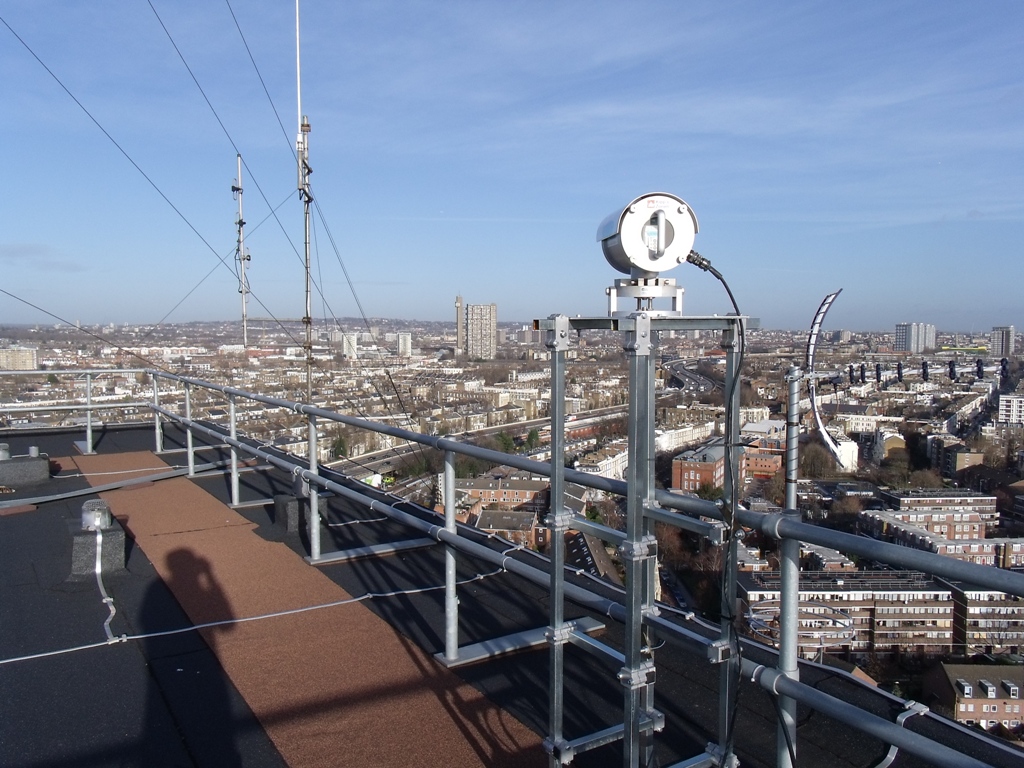

Fig. 2.81 LAS150 view to NTT 06-01-2012.

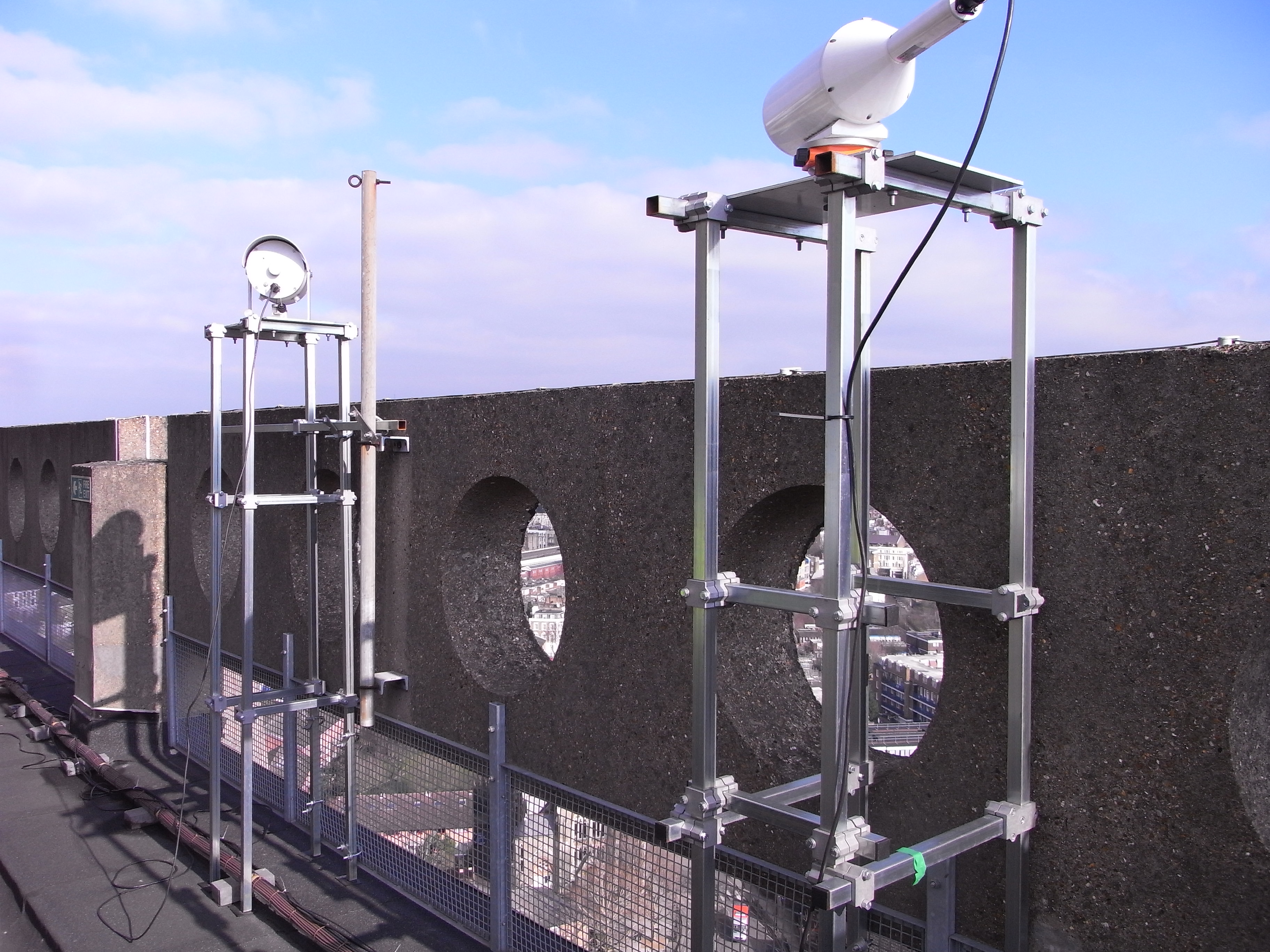

Fig. 2.82 BLS reciever and LASMKII unknown date between 2012-09-21 and 2013-02-26.

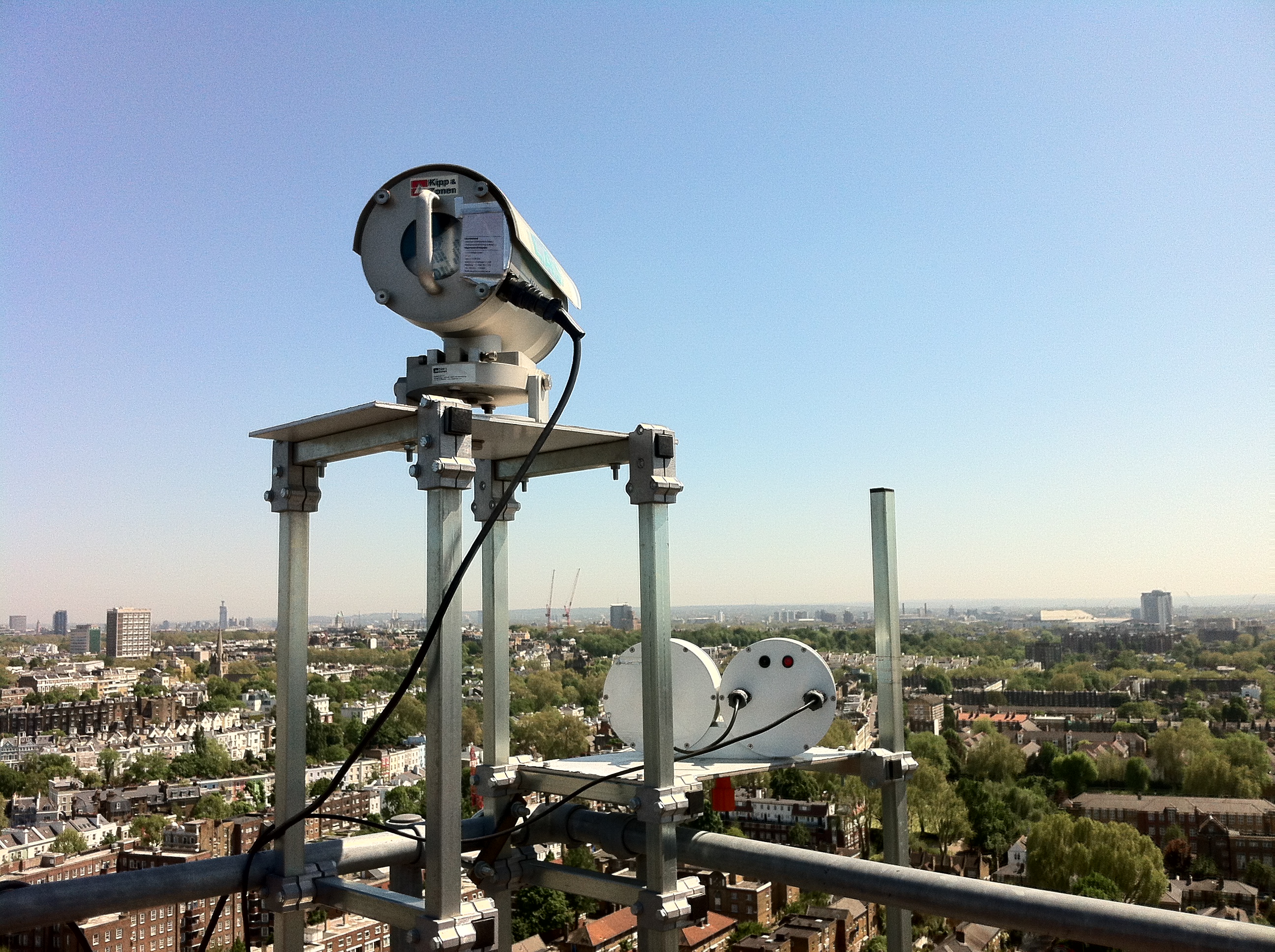

Fig. 2.83 BLS transmitter to NDT and LAS150 reciever from NDT 25-05-2011.

2.6.27.4. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

2.6.27.5. Data availability

Double click on legend to isolate instruments.

2.6.27.6. Acknowledgements

We thank Adrian Bowmann at Royal Borough of Kensington and Chelsea for site access.
