2.6.9. EMB

2.6.9.1. Introduction

Vicoria Embankment gardens in the City of Westminster, London. Soil moisture probes have been deployed there.

2.6.9.2. Site metadata

Site ID	EMB
Full Name	Victoria Embankment Gardens
Network	LUMA
Longitude	-0.1217	degrees
Latitude	51.5081	degrees
Start date	2010-06-22	UTC
End date	2015-11-02	UTC
Displacement height	-999.0	m
City	London

2.6.9.3. Deployments at site

Table 2.70 All site deployments

Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
80	SM300	A01357	single	SMP 123	2010-07-30	2010-10-13
89	SM300	A01357	single	SMP 123	2011-02-09	2011-12-31
467	SM300	A01357	single	SMP 123	2012-01-01	2012-12-31
468	SM300	A01357	single	SMP 123	2013-01-01	2015-11-02
81	SM300	A01366	single	SMP 123	2010-07-30	2010-10-13
90	SM300	A01366	single	SMP 123	2011-02-09	2011-12-31
465	SM300	A01366	single	SMP 123	2012-01-01	2012-12-31
466	SM300	A01366	single	SMP 123	2013-01-01	2015-11-02
82	SM300	A01358	single	SMP 126	2010-07-30	2010-09-22
91	SM300	A01358	single	Incomplete SMP 126	2012-03-15	2012-11-01
92	SM300	A01358	single	Incomplete SMP 126	2012-11-02	2012-12-31
464	SM300	A01358	single	Incomplete SMP 126	2013-01-01	2013-03-04
83	SM300	A01359	single	SMP 126	2010-07-30	2010-09-22
84	SM300	A01360	single	SMP 121	2010-07-30	2010-11-12
85	SM300	A01362	single	SMP 122	2010-07-30	2011-01-04
86	SM300	A01364	single	SMP 120	2010-07-30	2010-09-22
87	SM300	A01365	single	SMP 120	2010-07-30	2010-09-22
88	SM300	A01605	single	SMP 163	2010-09-22	2010-10-13
93	ML2	224_063_EMB	single	Incomplete and check end date ML2	2010-06-22	2015-01-01

Table 2.71 Position of deployments

Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
80	-0.14	0.0	0.0	0.0
89	-0.15	0.0	0.0	0.0
467	-0.15	0.0	0.0	0.0
468	-0.15	0.0	0.0	0.0
81	-0.15	0.0	0.0	0.0
90	-0.15	0.0	0.0	0.0
465	-0.15	0.0	0.0	0.0
466	-0.15	0.0	0.0	0.0
82	-0.16	0.0	0.0	0.0
91	-999.0	0.0	0.0	0.0
92	-999.0	0.0	0.0	0.0
464	-999.0	0.0	0.0	0.0
83	-0.15	0.0	0.0	0.0
84	-0.17	0.0	0.0	0.0
85	-0.17	0.0	0.0	0.0
86	-0.17	0.0	0.0	0.0
87	-0.16	0.0	0.0	0.0
88	-0.1	0.0	0.0	0.0
93	-999.0	0.0	0.0	0.0

2.6.9.4. Photos

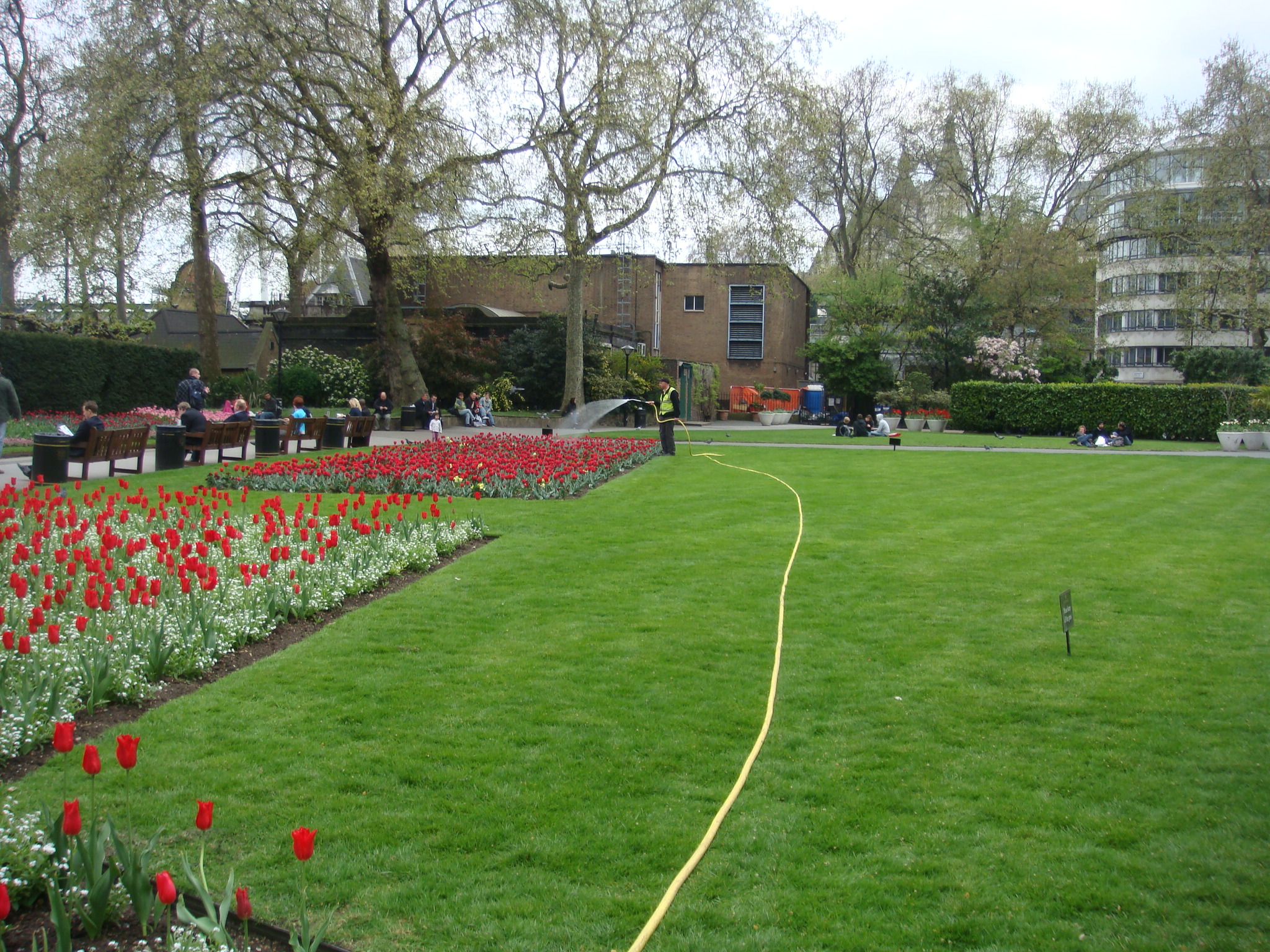

Fig. 2.25 The gardens 14-03-2011.

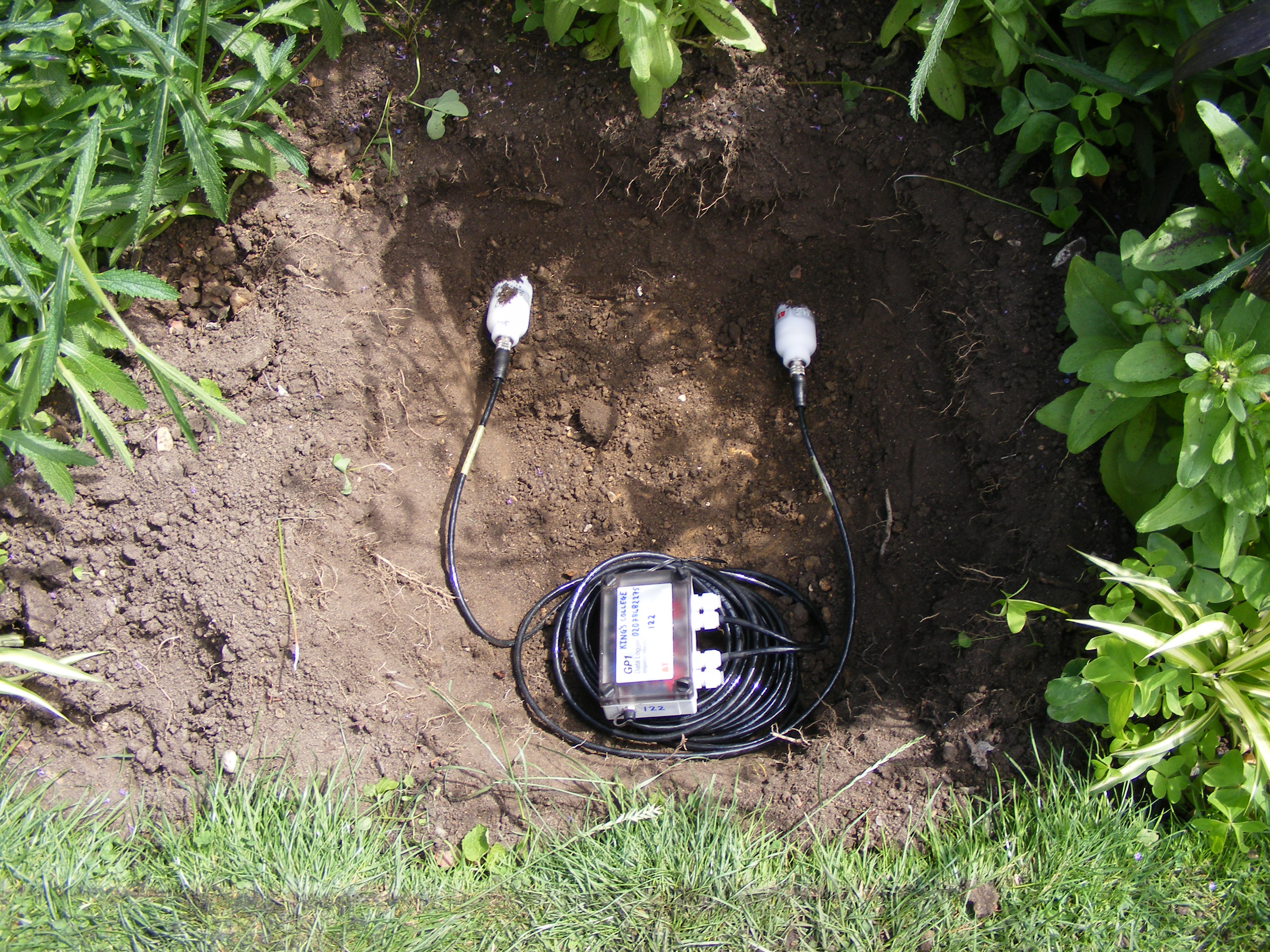

Fig. 2.26 SM300 in flower bed 30-07-2010.

2.6.9.5. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

2.6.9.6. References

1. Magliulo, V., Toscano, P., Grimmond, C. S. B., Kotthaus, S., J�rvi, L., Set�l�, H., Lindberg, F., Vogt, R., Staszewski, T., Bubak, A., Synnefa, A. and Santamouris, M. (2014) Environmental measurements in BRIDGE case studies. In: Chrysoulakis, N., de Castro, E. A. and Moors, E. J. (eds.) Understanding Urban Metabolism. Routledge, pp. 45-57. ISBN 9780415835114
