2.6.12. HOP¶

2.6.12.1. Introduction¶

The Kings College sports ground in Honor Oak, in the London borough of Lewisham. It has had a Ceilometer stationed there since 2018. The site is part of the London Air Quality network so stations an array of air quality monitoring equipment, administered by the Environmental Research Group at Imperial College London.

2.6.12.2. Site metadata¶

Site ID	HOP
Full Name	Honor Oak Park
Network	LUMA
Longitude	-0.037491	degrees
Latitude	51.449684	degrees
Start date	2018-12-12	UTC
End date		UTC
Displacement height	-999.0	m
City	London

2.6.12.3. Deployments at site¶

Table 2.76 All site deployments¶
Deployment ID	Instrument ID	Instrument serial	Type	Deployment name	Start date	End date
					UTC	UTC
454	CL31	103150004	ceilometer	CL31-E	2018-12-12

Table 2.77 Position of deployments¶
Deployment ID	Height	Yaw	Pitch	Roll
	m asl	degrees	degrees	degrees
454	10.0	0.0	0.0	0.0

Table 2.78 Metadata specific to profiles¶
Deployment ID	Profile bottom	Profile top	Profile step
	m asl	m asl	m
454	10.0		10.0

2.6.12.4. Photos¶

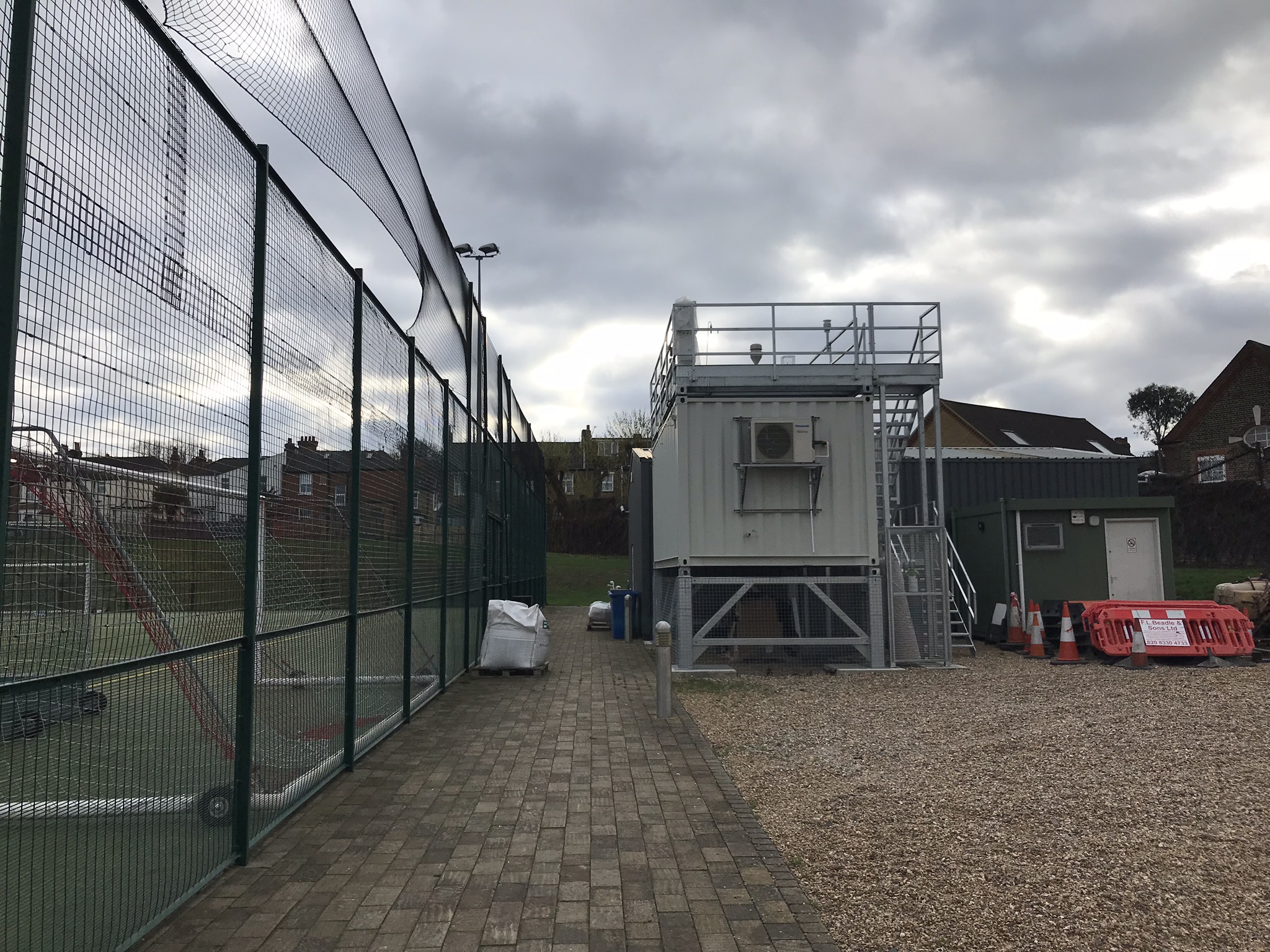

../../../_images/IMG_2667.jpeg — Fig. 2.29 View of cabin looking South 12-12-2018.¶

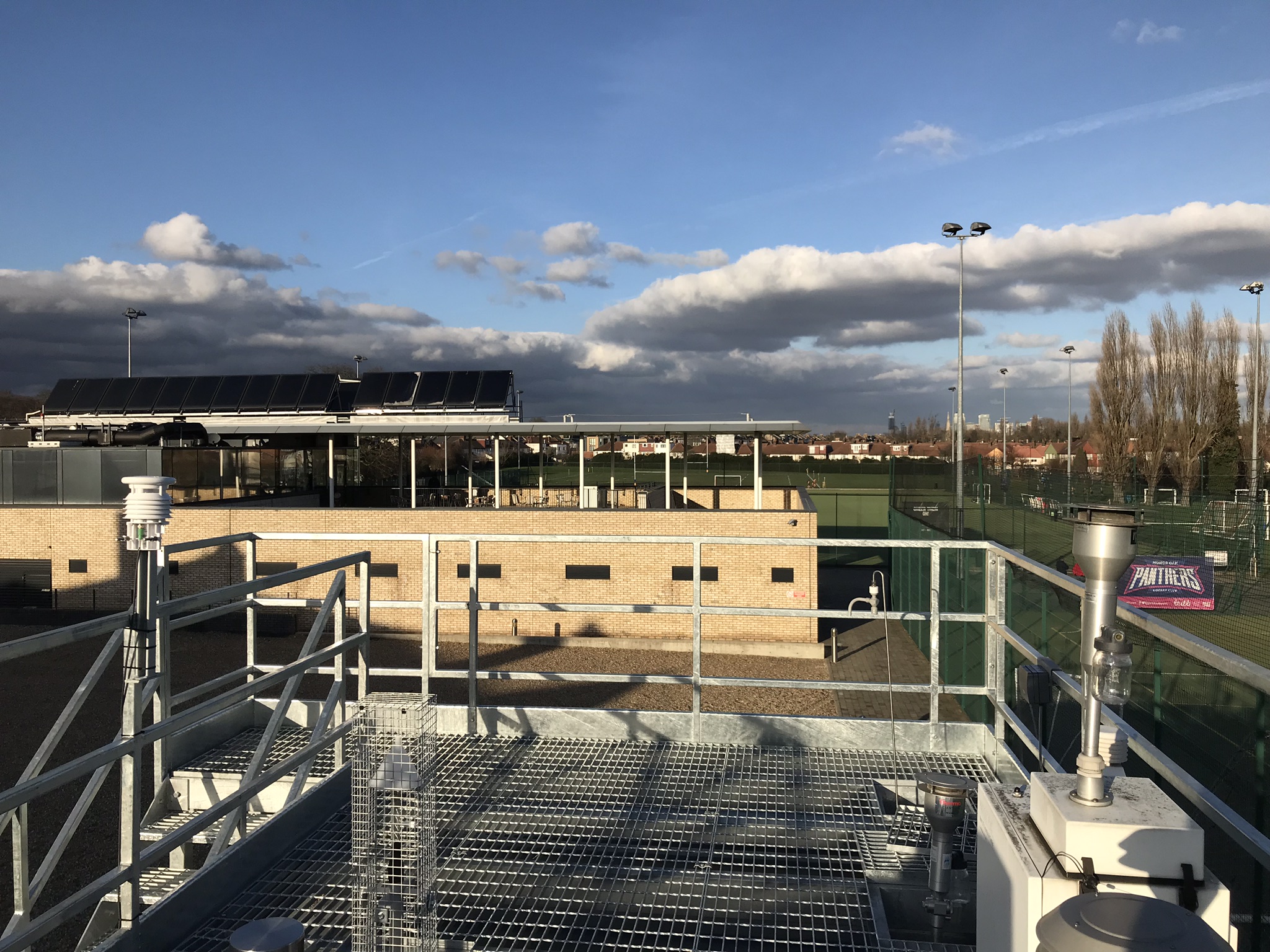

../../../_images/IMG_2672.jpeg — Fig. 2.30 View from top of cabin looking North 12-12-2018.¶

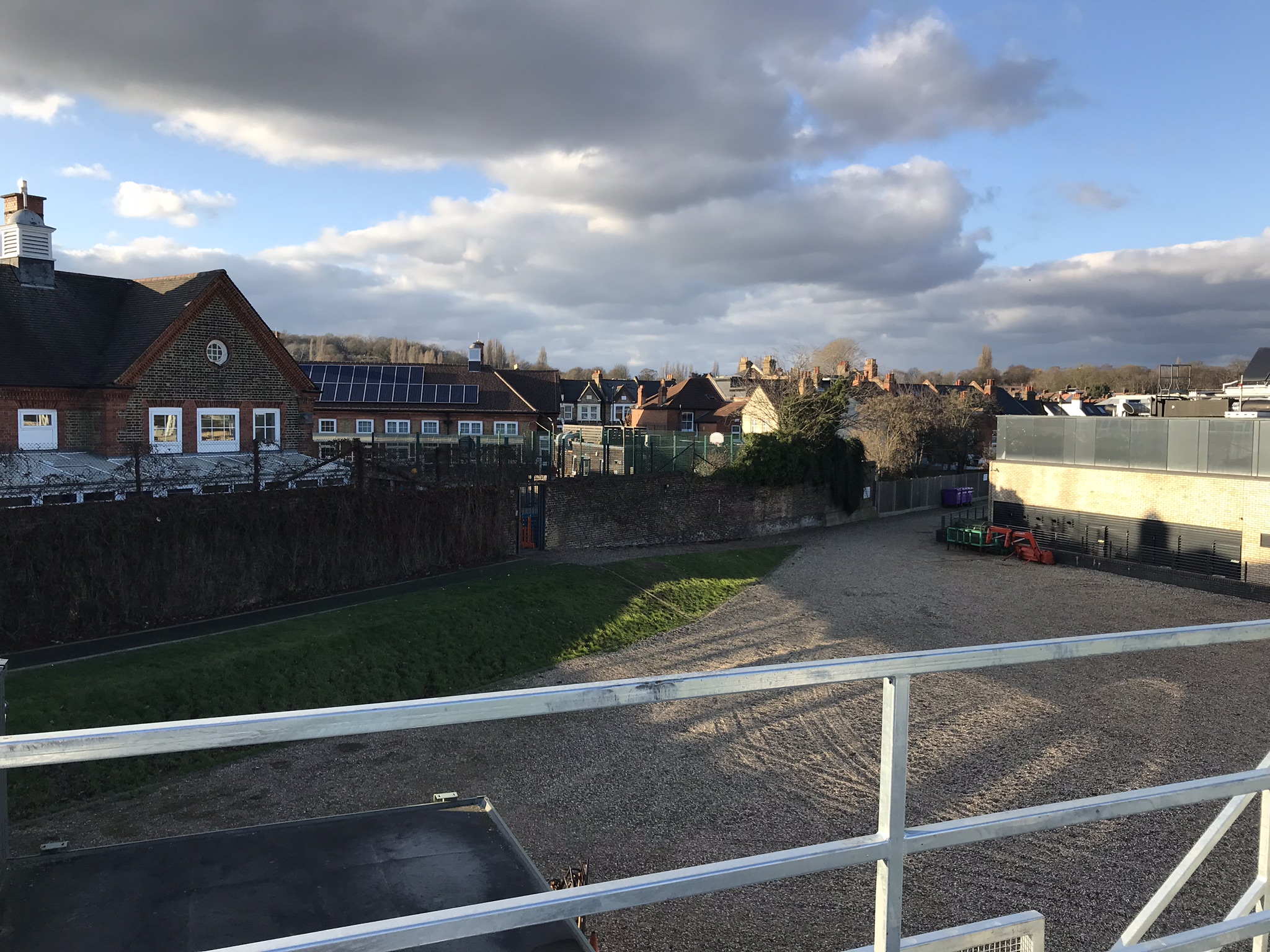

../../../_images/IMG_2671.jpeg — Fig. 2.31 View from cabin roof looking North East 12-12-2018.¶

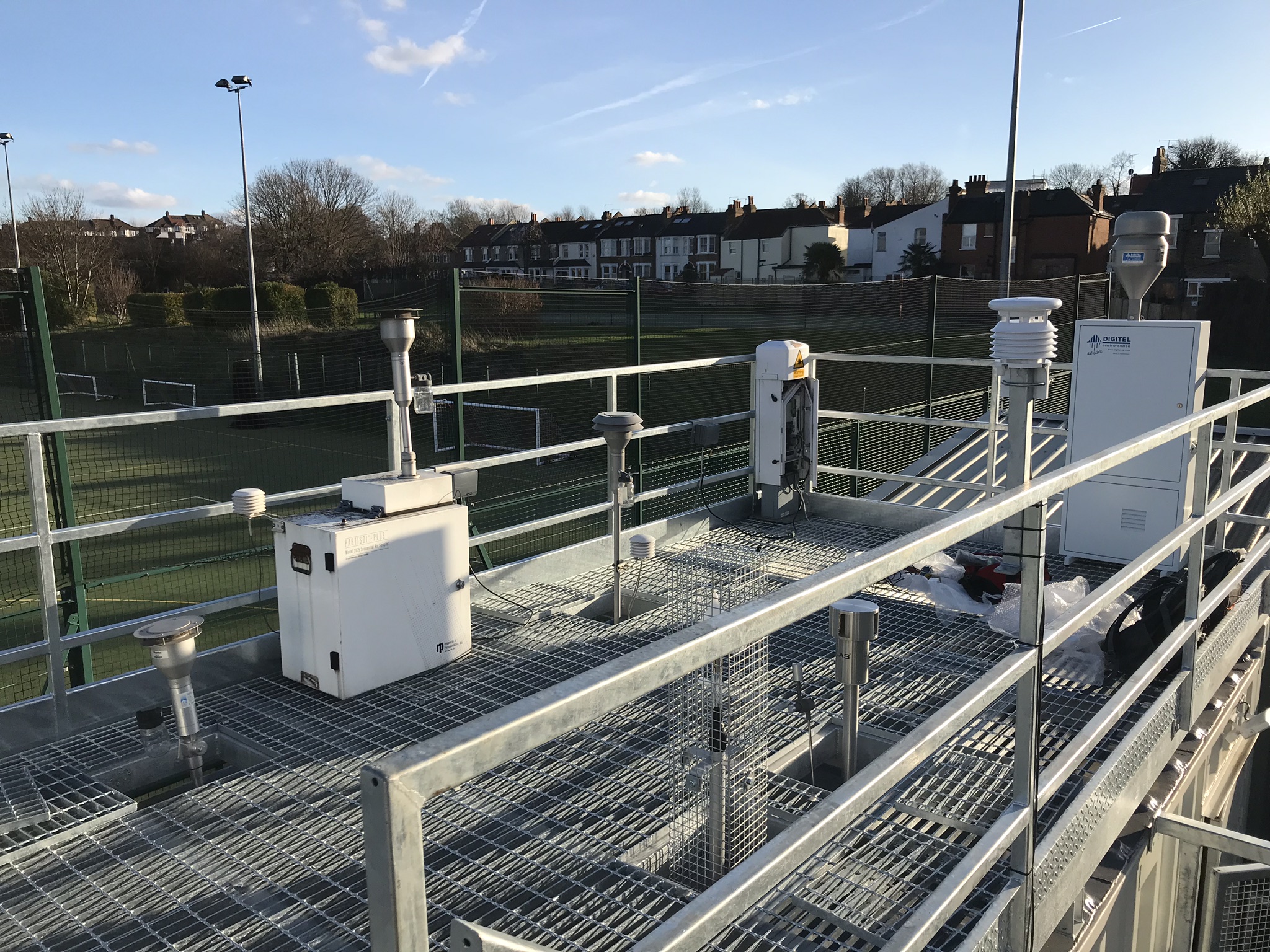

../../../_images/IMG_2685.jpeg — Fig. 2.32 Cabin roof and :ref:`CL31`with door open 12-12-2018.¶

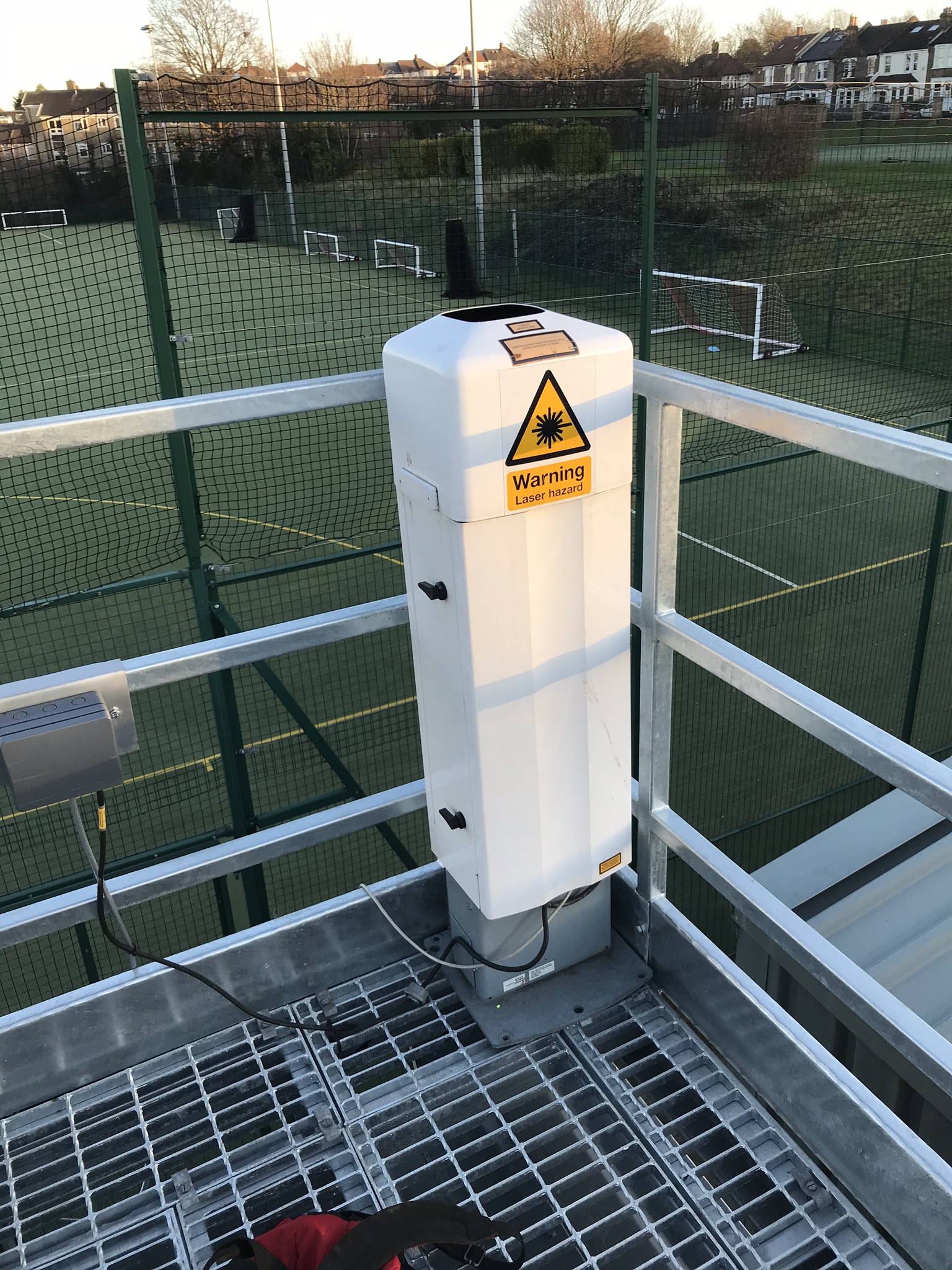

../../../_images/IMG_2710(1).jpeg — Fig. 2.33 CL31 12-12-2018.¶

2.6.12.5. Data acquisition¶

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).

2.6.12.6. Data availability¶

Double click on legend to isolate instruments.

2.6.12.7. References¶

Whalley, L. K., Slater, E. J., Woodward-Massey, R., Ye, C., Lee, J. D., Squires, F., Hopkins, J. R., Dunmore, R. E., Shaw, M., Hamilton, J. F., Lewis, A. C., Mehra, A., Worrall, S. D., Bacak, A., Bannan, T. J., Coe, H., Percival, C. J., Ouyang, B., Jones, R. L., Crilley, L. R., Kramer, L. J., Bloss, W. J., Vu, T., Kotthaus, S., Grimmond, S., Sun, Y., Xu, W., Yue, S., Ren, L., Acton, W. J. F., Hewitt, C. N., Wang, X., Fu, P. and Heard, D. E. (2021) Evaluating the sensitivity of radical chemistry and ozone formation to ambient VOCs and NOₓ in Beijing. Atmospheric Chemistry and Physics, 21 (3). pp. 2125-2147. ISSN 1680-7316 doi: https://doi.org/10.5194/acp-21-2125-2021
