3.17.1. CNR1

3.17.1.1. Introduction

The CNR1 is a net radiometer manufactured manufactured by Kipp and Zonen. It measures four components of radiation (shortwave and longwave both upwards and downwards). It works by having two pyranometers and two pyrgeometers, with one of each facing both upwards and downwards.

3.17.1.2. Manufacturer and Model

Model

Brand

Type

CNR1

Kipp & Zonen

Net Radiometer

3.17.1.3. Output definitions

Ouput definition ID

File Identifier

Level Number

QAQC notes

File time resolution

CNR1

CNR1_%SITE

0

No_QAQC

1min

CNR1

CNR1_%SITE

0

No_QAQC

15min

CNR1

CNR1_%SITE

0

No_QAQC

5sec

CNR1

CNR1_%SITE

1

Thresholds_applied

1min

CNR1

CNR1_%SITE

1

Thresholds_applied

15min

CNR1

CNR1_%SITE

1

Thresholds_applied

5sec

3.17.1.4. Processing code

Code used to process raw data: https://github.com/Urban-Meteorology-Reading/Operations-Radiometers

3.17.1.5. Variables measured by instrument

Table 3.15 Variables measured - sorted alphabetically

Variable ID

Full Name

Unit

Lower Threshold

Upper Threshold

Files present (Output definition ID,Level No,Time resolution)

albedo

bulk_surface_albedo

dimensionless

0.0

1.0

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

FLAG

Status flag

N/A

CNR1,1,1min CNR1,1,15min CNR1,1,5sec

Kdn

incoming_shortwave_radiation

W.m-2

0.0

1200.0

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

Kup

outgoing_shortwave_radiation

W.m-2

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

Ldn

incoming_longwave_radiation

W.m-2

100.0

600.0

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

Lup

outgoing_longwave_radiation

W.m-2

200.0

750.0

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

nSamples

nSamples

samples/interval

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

Qstar

net_allwave_radiation

W.m-2

-850.0

1600.0

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

sd_albedo

standard_deviation_bulk_surface_albedo

dimensionless

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

sd_Kdn

incoming_shortwave_radiation

W.m-2

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

sd_Kup

standard_deviation_Kup

W.m-2

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

sd_Ldn

standard_deviation_Ldn

W.m-2

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

sd_Lup

standard_deviation_Lup

W.m-2

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

sd_Qstar

standard_devation_net_allwave_radiation

W.m-2

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

sd_T_CNR

standard_deviation_T_CNR1_C

Celsius

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

sd_T_CNR_K

Standard deviation air temperature CNR body temperature Kelvin

Kelvin

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

T_CNR

CNR_body_temperature

Celsius

-30.0

100.0

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

T_CNR_K

CNR_body_temperature_kelvin

K

-30.0

60.0

CNR1,0,1min CNR1,0,15min CNR1,0,5sec CNR1,1,1min CNR1,1,15min CNR1,1,5sec

3.17.1.6. Serials

Serial

Suffix

00022123

A

000220

B

3.17.1.7. Deployments

3.17.1.7.1. Serial number: 00022123

Site ID

Start date

End date

SWT

2017-05-18 00:00

2021-07-16 00:00

3.17.1.7.2. Serial number: 000220

Site ID

Start date

End date

KSK15S

2007-02-20 00:00

2008-08-12 00:00

KSK

2008-08-13 00:00

2009-09-30 00:00

KSS

2009-10-09 00:00

2012-03-25 00:00

KSNW

2012-09-19 00:00

2016-02-18 00:00

IMU

2016-05-04 00:00

2019-08-30 00:00

3.17.1.8. Photos

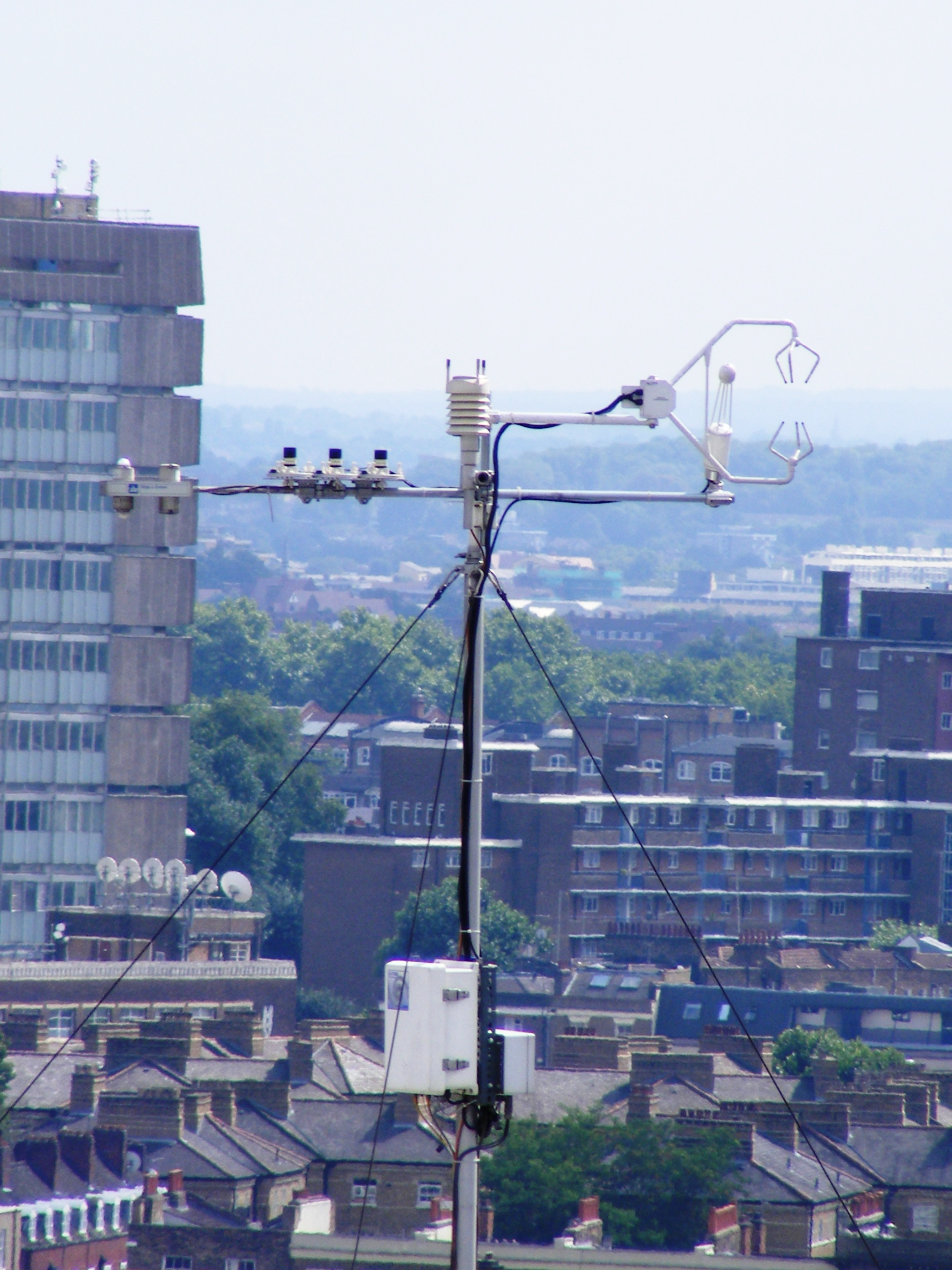

../../../_images/dscf1772_23787603735_o.jpg

Fig. 3.39 CNR1 (leftmost instrument) at KSK 18/08/2009

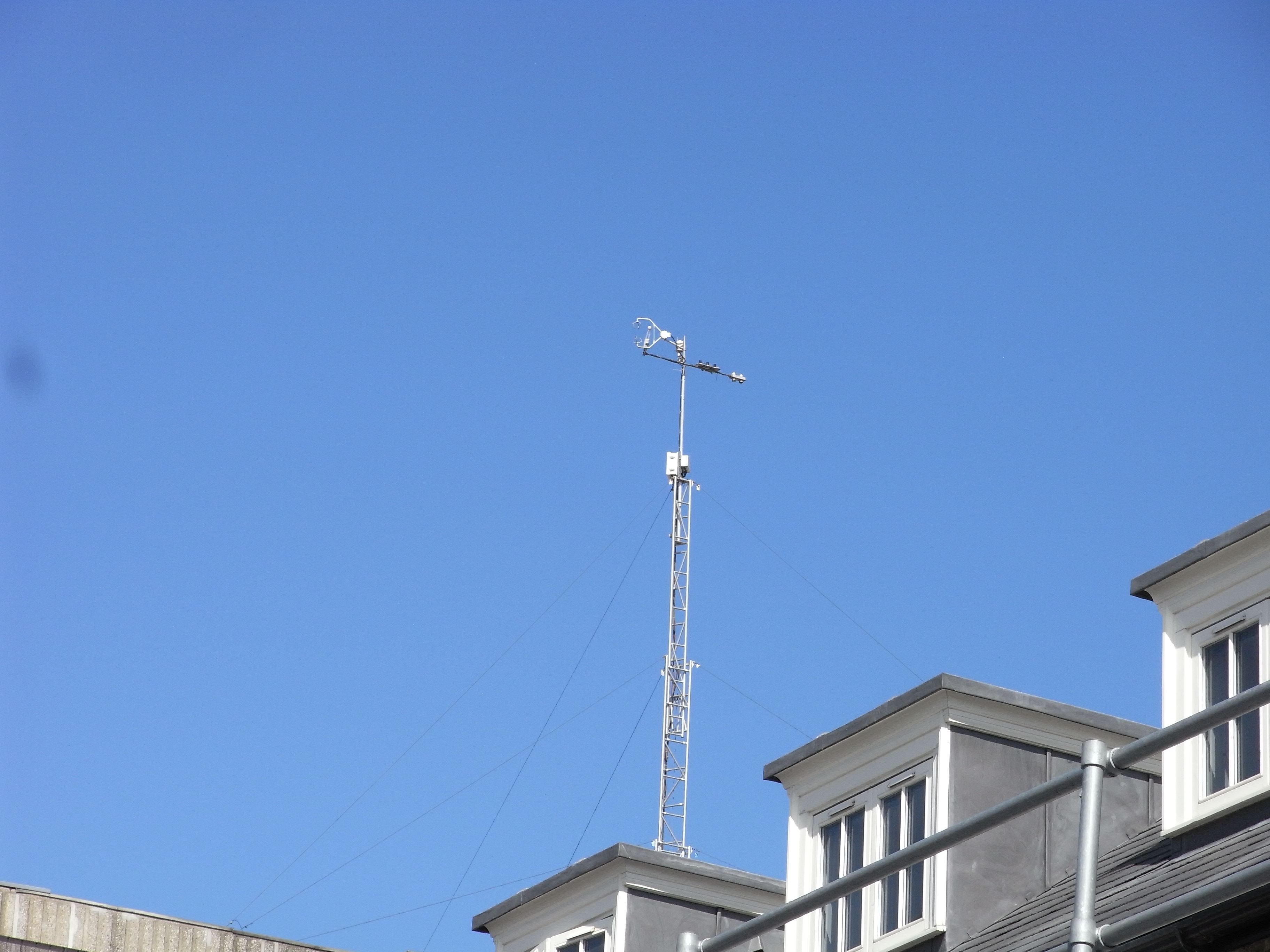

../../../_images/r0015029_23161117173_o.jpg

Fig. 3.40 On top of tower at KSS 08/04/2011

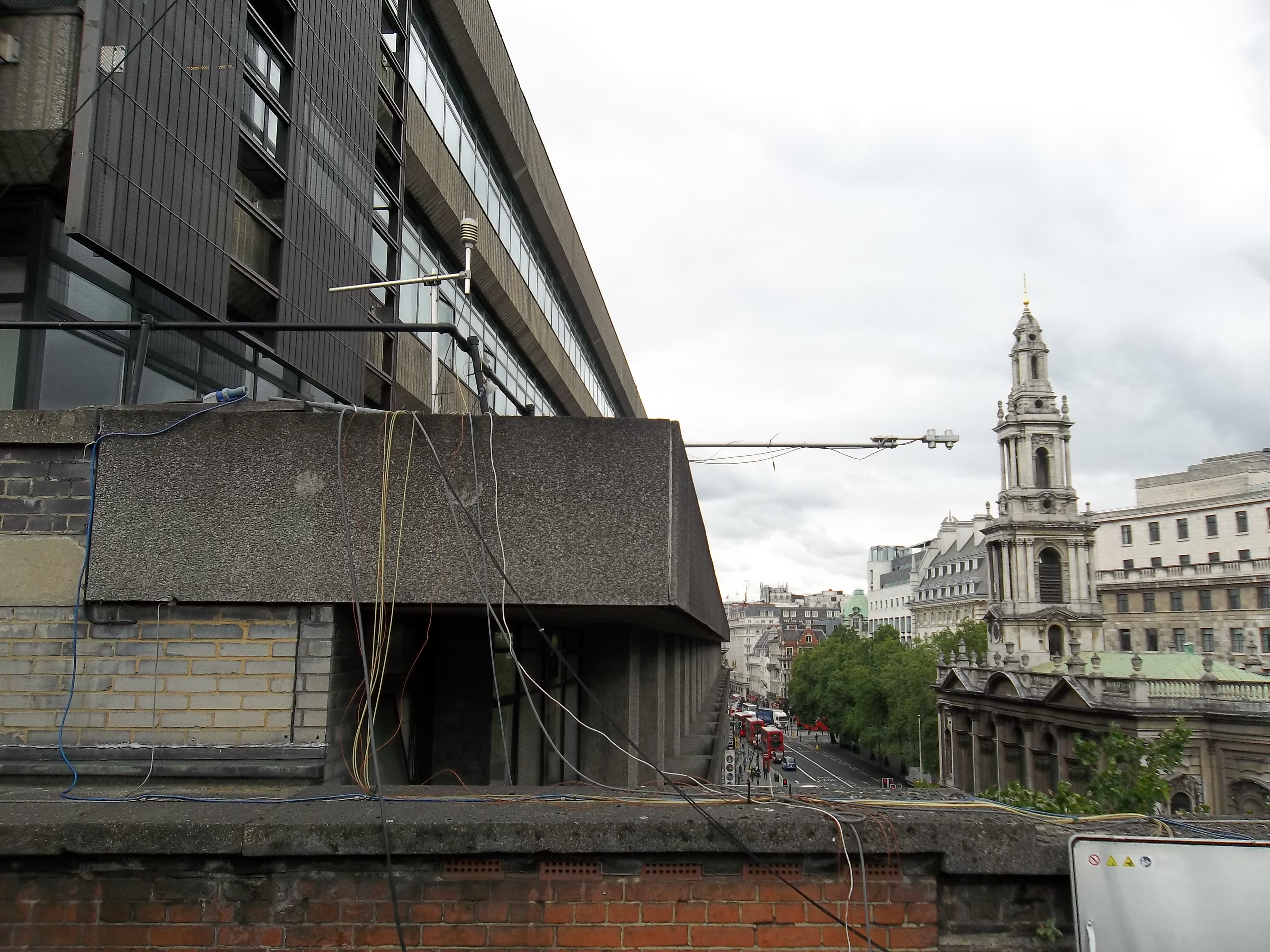

../../../_images/102_1939_23631816005_o.jpg

Fig. 3.41 At KSNW 05/07/2015

../../../_images/img_2869_35347870513_o.jpg

Fig. 3.42 At IMU 21/07/2017

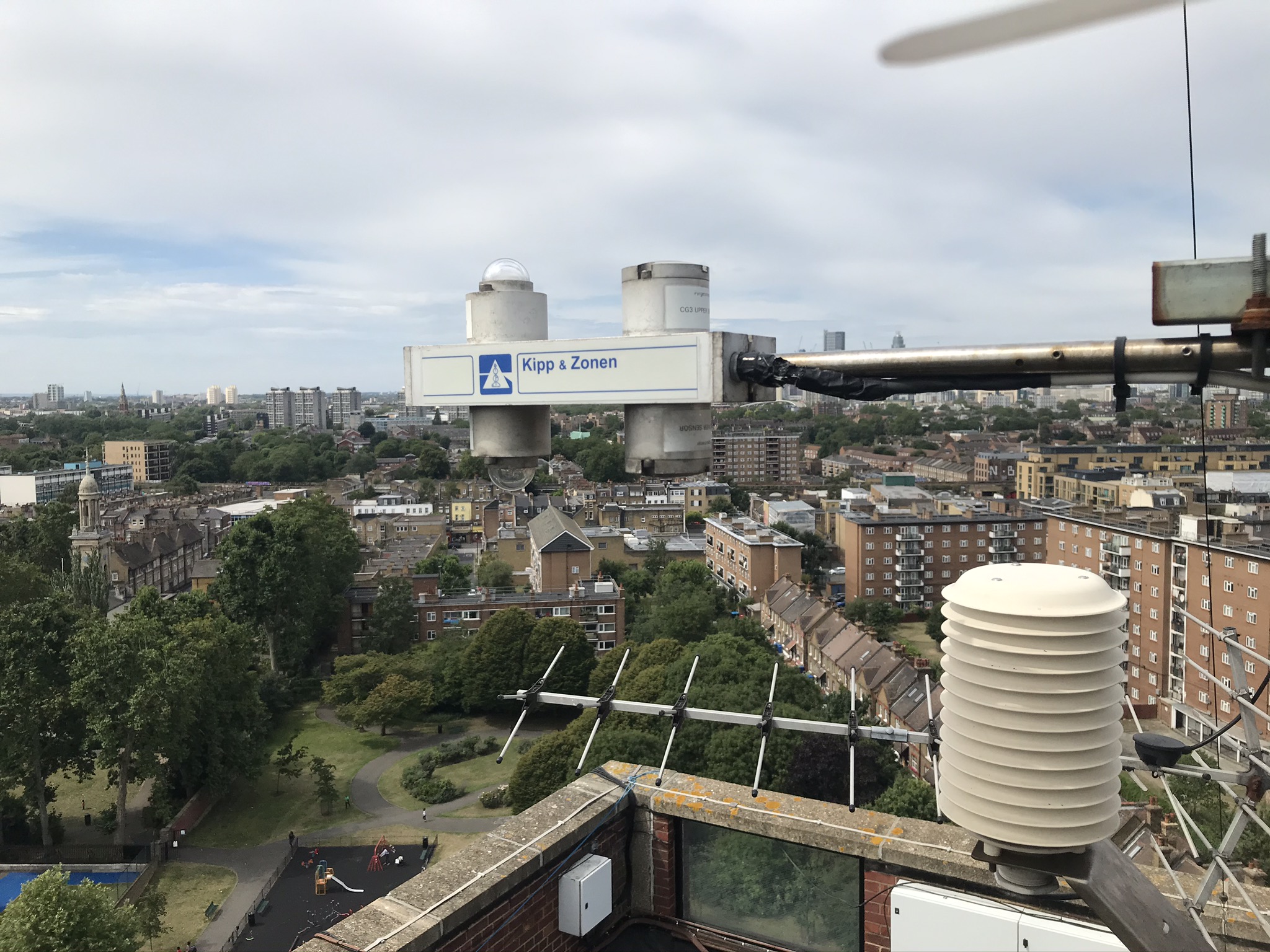

../../../_images/23-07-2020_(14).JPEG

Fig. 3.43 At SWT 23/07/2020

3.17.1.9. Supplementary information

Link

Title

Description

CNR1 manual

CNR1 manual

Manual from Campbell Scientific

3.17.1.10. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).
