3.17.2. CNR4

3.17.2.1. Introduction

The CNR4 is a net radiometer manufactured manufactured by Kipp and Zonen. It measures four components of radiation (shortwave and longwave both upwards and downwards). It works by having two pyranometers and two pyrgeometers, with one of each facing both upwards and downwards.

3.17.2.2. Manufacturer and Model

Model

Brand

Type

CNR4

Kipp & Zonen

Net Radiometer

3.17.2.3. Output definitions

Ouput definition ID

File Identifier

Level Number

QAQC notes

File time resolution

CNR4

CNR4_%SITE

0

No_QAQC

1min

CNR4

CNR4_%SITE

0

No_QAQC

15min

CNR4

CNR4_%SITE

0

No_QAQC

5sec

CNR4

CNR4_%SITE

1

Thresholds_applied

1min

CNR4

CNR4_%SITE

1

Thresholds_applied

15min

CNR4

CNR4_%SITE

1

Thresholds_applied

5sec

3.17.2.4. Processing code

Code used to process raw data: https://github.com/Urban-Meteorology-Reading/Operations-Radiometers

3.17.2.5. Variables measured by instrument

Table 3.16 Variables measured - sorted alphabetically

Variable ID

Full Name

Unit

Lower Threshold

Upper Threshold

Files present (Output definition ID,Level No,Time resolution)

albedo

bulk_surface_albedo

dimensionless

0.0

1.0

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

FLAG

Status flag

N/A

CNR4,1,1min CNR4,1,15min CNR4,1,5sec

Kdn

incoming_shortwave_radiation

W.m-2

0.0

1200.0

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

Kup

outgoing_shortwave_radiation

W.m-2

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

Ldn

incoming_longwave_radiation

W.m-2

100.0

600.0

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

Lup

outgoing_longwave_radiation

W.m-2

200.0

750.0

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

nSamples

nSamples

samples/interval

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

Qstar

net_allwave_radiation

W.m-2

-850.0

1600.0

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

sd_albedo

standard_deviation_bulk_surface_albedo

dimensionless

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

sd_Kdn

incoming_shortwave_radiation

W.m-2

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

sd_Kup

standard_deviation_Kup

W.m-2

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

sd_Ldn

standard_deviation_Ldn

W.m-2

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

sd_Lup

standard_deviation_Lup

W.m-2

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

sd_Qstar

standard_devation_net_allwave_radiation

W.m-2

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

sd_T_CNR

standard_deviation_T_CNR1_C

Celsius

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

T_CNR

CNR_body_temperature

Celsius

-30.0

100.0

CNR4,0,1min CNR4,0,15min CNR4,0,5sec CNR4,1,1min CNR4,1,15min CNR4,1,5sec

3.17.2.6. Serials

Serial

Suffix

100312

A

100311

B

090064

C

090065

D

3.17.2.7. Deployments

3.17.2.7.1. Serial number: 100311

Site ID

Start date

End date

KSSW

2012-03-26 00:00

2014-08-13 00:00

KSSW

2014-08-13 00:00

2014-09-04 00:00

KSSW

2014-09-04 00:00

2016-09-14 00:00

KSSW

2016-09-15 00:00

2017-06-13 00:00

3.17.2.7.2. Serial number: 090064

Site ID

Start date

End date

SHU

2017-01-01 00:00

2018-03-07 00:00

3.17.2.7.3. Serial number: 100312

Site ID

Start date

End date

KSK

2010-09-21 00:00

2013-03-04 00:00

KSSW

2014-08-12 00:00

2014-09-03 00:00

3.17.2.7.4. Serial number: 090065

Site ID

Start date

End date

BTT

2017-01-01 00:00

2019-03-17 00:00

3.17.2.8. Photos

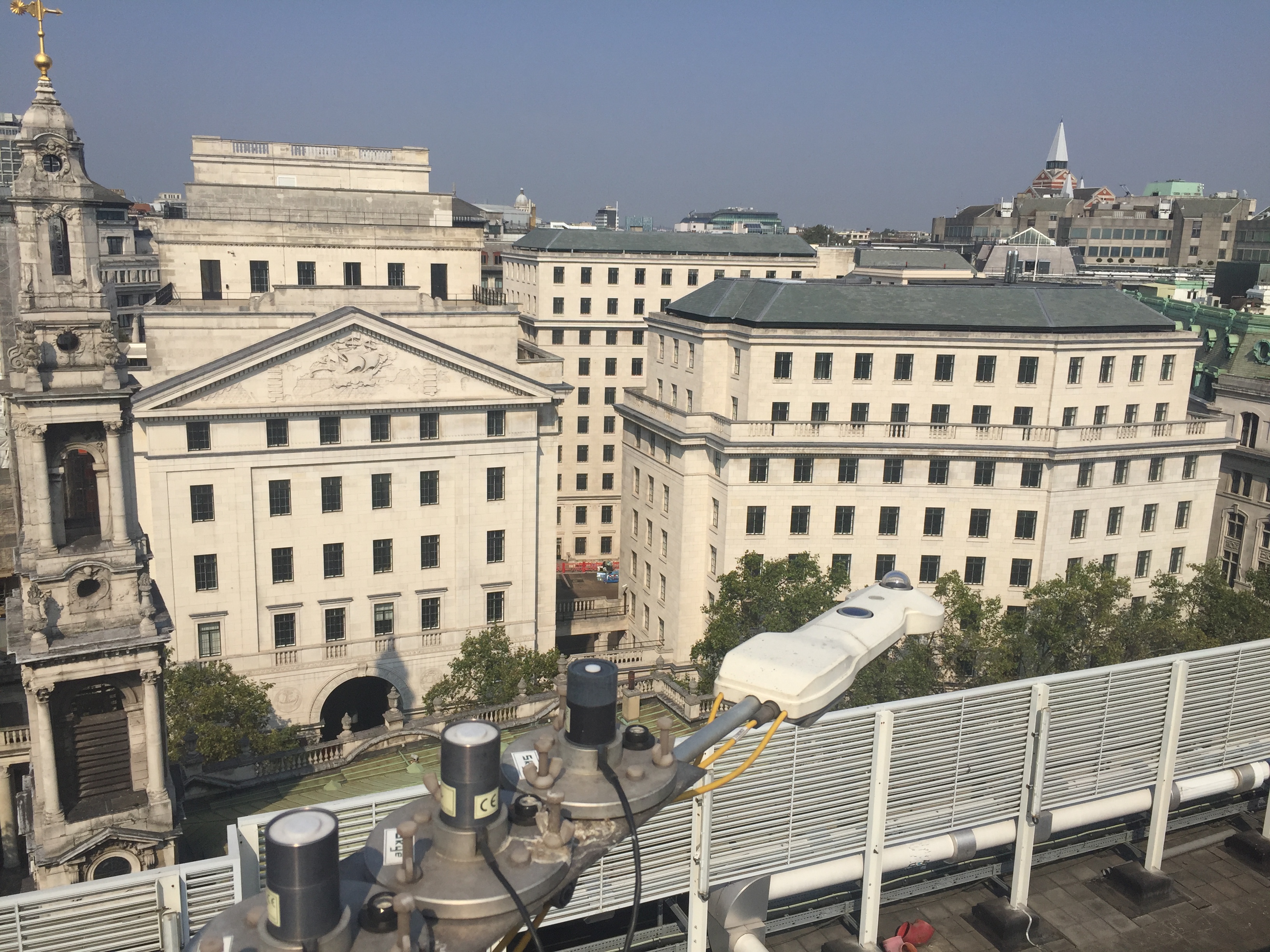

../../../_images/tower-lowering-15092016_29409179500_o.jpg

Fig. 3.44 At KSSW 15/09/2016

../../../_images/32729326734_19790cb776_o.jpg

Fig. 3.45 At SHU 20/01/2017.

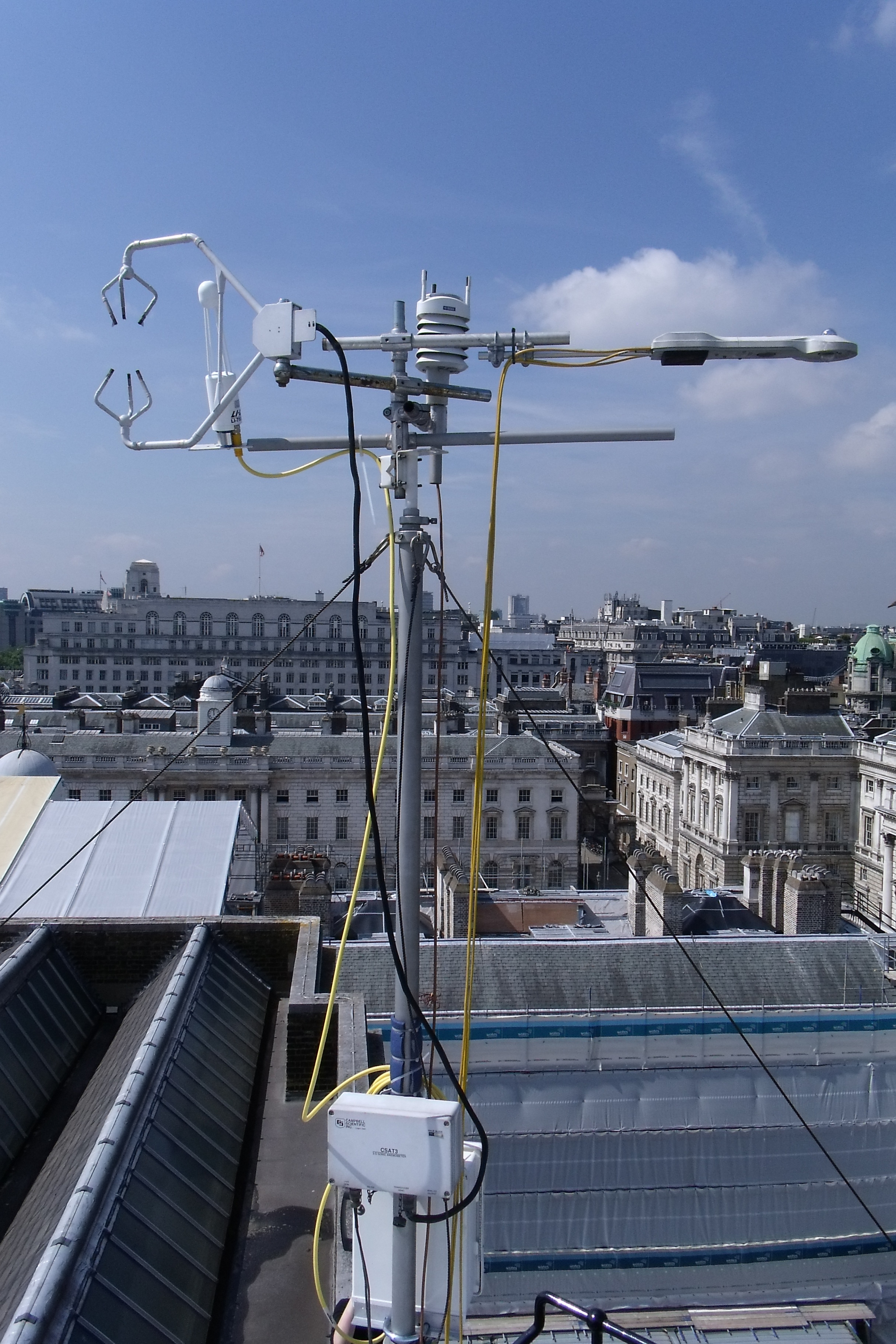

../../../_images/ksk_mast_1_23679118412_o(2).jpg

Fig. 3.46 At KSK (right most instrument) 19/08/2011.

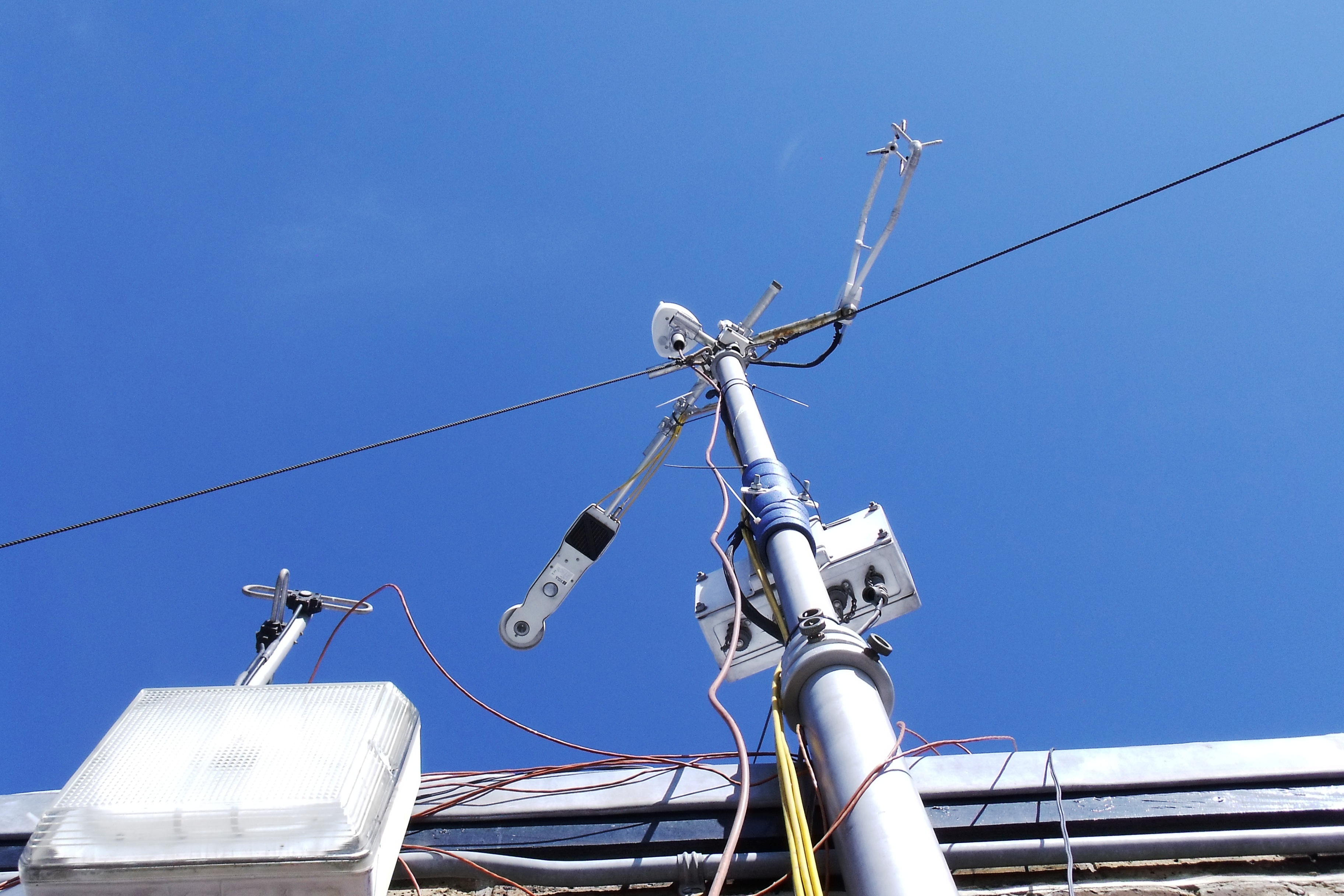

../../../_images/ksk_mast_2_23159424554_o.jpg

Fig. 3.47 Seen from below at KSK 06/04/2011.

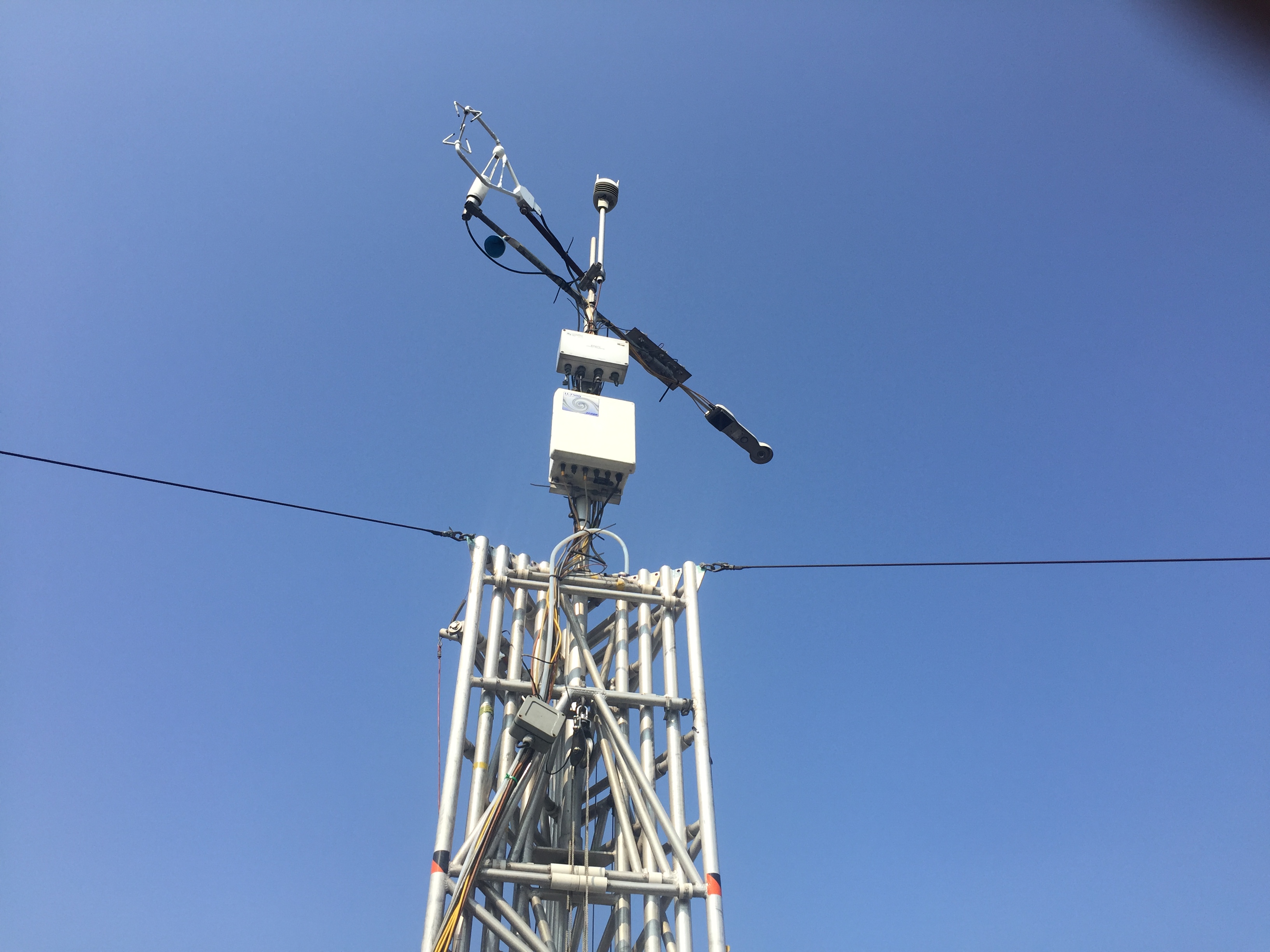

../../../_images/tower-lowering-15092016_29073458294_o.jpg

Fig. 3.48 Atop tower at KSSW 15/09/2016.

3.17.2.9. Supplementary information

Link

Title

Description

https://www.kippzonen.com/Product/85/CNR4-Net-Radiometer#.YAa61hanxPY

Manual location

Manual by Kipp and Zonen

CNR4 brochure

CNR4 brochure

From Kipp and Zonen

3.17.2.10. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).
