3.22.3. TT200¶
3.22.3.1. Introduction¶
THERM200 from Vegetronix is a soil temperature probe that is buried in the ground to take readings. One has been deployed at RGS.
3.22.3.2. Manufacturer and Model¶
Model |
Brand |
Type |
|---|---|---|
THERM200 |
Vegetronix |
Soil Moisture Probe |
3.22.3.3. Output definitions¶
Ouput definition ID |
File Identifier |
Level Number |
QAQC notes |
File time resolution |
|---|---|---|---|---|
TT200 |
TT200%LETTER_%SITE |
0 |
None |
15min |
3.22.3.4. Processing code¶
Code used to process raw data: https://github.com/Urban-Meteorology-Reading/Operations-WSN
3.22.3.5. Variables measured by instrument¶
Variable ID |
Full Name |
Unit |
Lower Threshold |
Upper Threshold |
Files present (Output definition ID,Level No,Time resolution) |
|---|---|---|---|---|---|
BattVolt |
Battery_Voltage |
V |
TT200,0,15min |
||
Soil_Moist |
Soil_Moisture |
% |
0.0 |
100.0 |
TT200,0,15min |
Soil_Temp |
Soil_Temperature |
Celsius |
-30.0 |
50.0 |
TT200,0,15min |
3.22.3.6. Serials¶
Serial |
Suffix |
|---|---|
A |
3.22.3.7. Deployments¶
3.22.3.7.1. Serial number: THERM2¶
Site ID |
Start date |
End date |
|---|---|---|
2017-06-21 00:00 |
2020-10-22 00:00 |

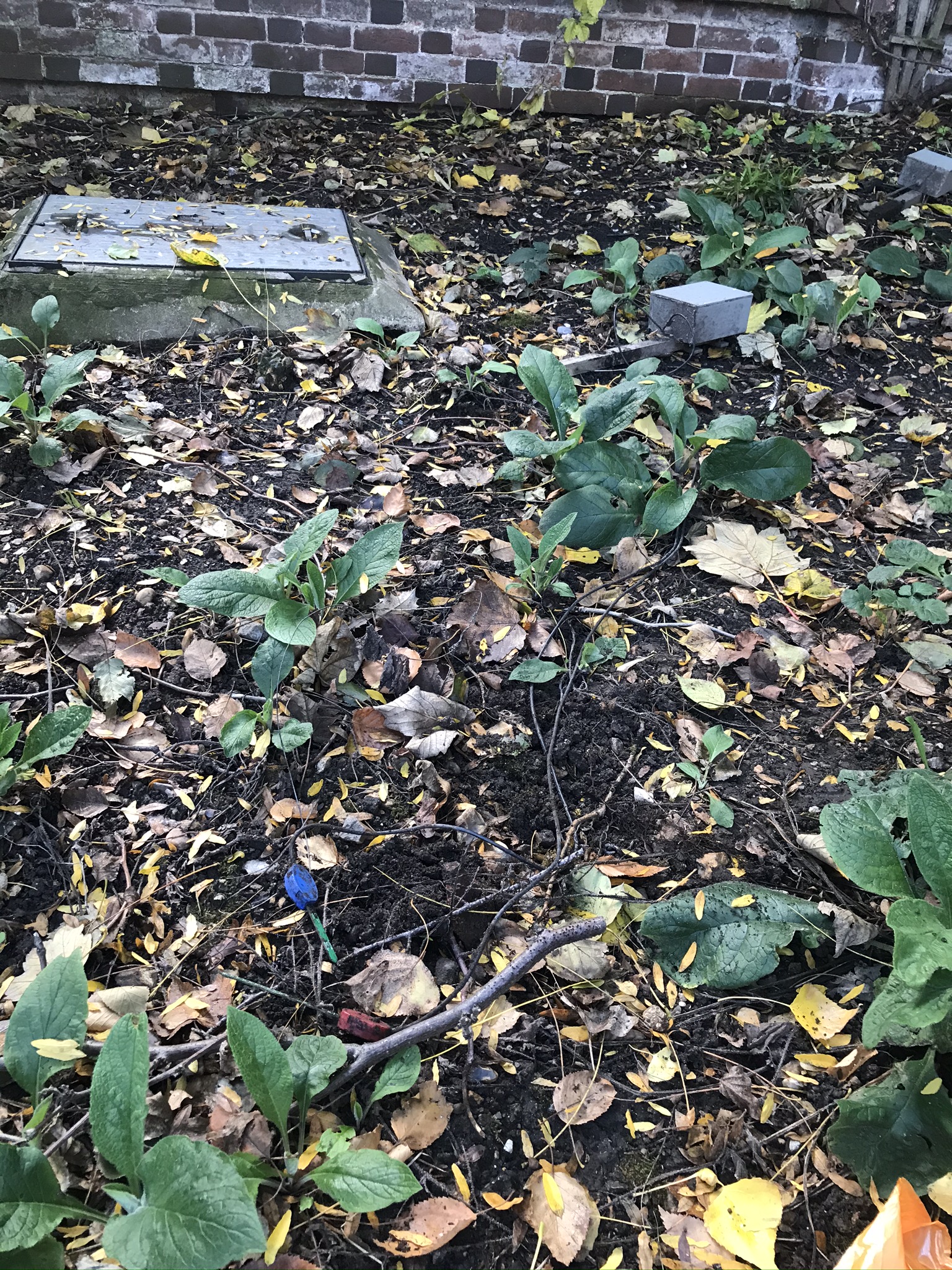

3.22.3.8. Photos¶
.JPEG)
3.22.3.9. Supplementary information¶
Link |
Title |
Description |
|---|---|---|
THERM200 webpage |
Vegetronix websit. |
3.22.3.10. Data acquisition¶
Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).
