3.5.3. TRISONICAWS

3.5.3.1. Introduction

TriSonica MiniWS manufacturered by Anemoment, a compact and lightweight 3D ultrasonic anemometor. It functions using ultrasonic acoustic waves. It can measure temperature and humidity as well as wind in three components. One was deployed at IMU for over a year from September 2018.

3.5.3.2. Manufacturer and Model

Model	Brand	Type
TriSonica Mini Weather Station	Anemoment	Anemometer

3.5.3.3. Output definitions

Ouput definition ID	File Identifier	Level Number	QAQC notes	File time resolution
Minisonic	Minisonic_%LETTER_%SITE	0	Rows w 50% NA omitted	10Hz
Minisonic	Minisonic_%LETTER_%SITE	0	Rows w 50% NA omitted	1min
Minisonic	Minisonic_%LETTER_%SITE	0	Rows w 50% NA omitted	15min

3.5.3.4. Variables measured by instrument

Table 3.3 Variables measured - sorted alphabetically

Variable ID	Full Name	Unit	Lower Threshold	Upper Threshold	Files present (Output definition ID,Level No,Time resolution)
dir	wind_direction	degree	0.0	360.0	Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
FLAG_ms	Minisonic flag	N/A	0.0	123.0	Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
Freq	Sample Frequency	Hz			Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
nSamples	nSamples	samples/interval			Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
press	barometric_pressure	hPa	800.0	1200.0	Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
q	specific_humidity	kg.kg-1			Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
RH	relative_humidity	%	0.0	100.0	Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
rho	Air Density	kg.m-3			Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
t_dew	Dew point temperature	Celsius			Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
Tair	air_temperature	Celsius	-30.0	50.0	Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
u	zonal_wind_component	m.s-1			Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
v	meridional_wind_component	m.s-1			Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
vert_dir	Vertical Wind Direction	degree	0.0	360.0	Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
w	Vertical wind component	m.s-1			Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
WS	horizontal_wind_speed	m.s-1	0.0	150.0	Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min
WS_3D	3D Wind Speed	m.s-1			Minisonic,0,10Hz Minisonic,0,1min Minisonic,0,15min

3.5.3.5. Serials

Serial	Suffix
M00102	A
M00100A	B
M00101A	C

3.5.3.6. Deployments

3.5.3.6.1. Serial number: M00101A

Site ID	Start date	End date
IMU	2018-09-11 00:00	2020-02-06 00:00

3.5.3.7. Photos

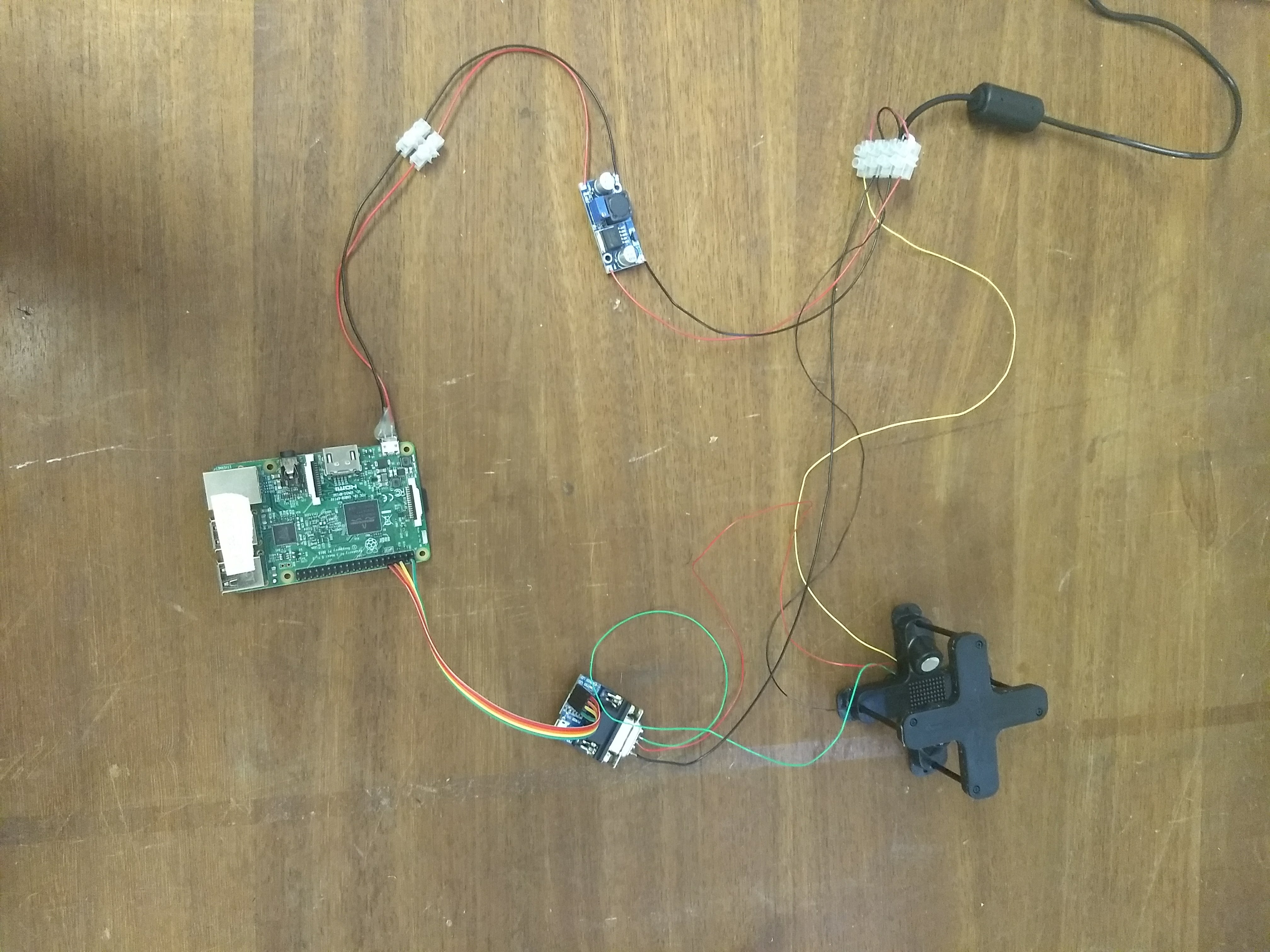

Fig. 3.6 Before being deployed 26-02-2018.

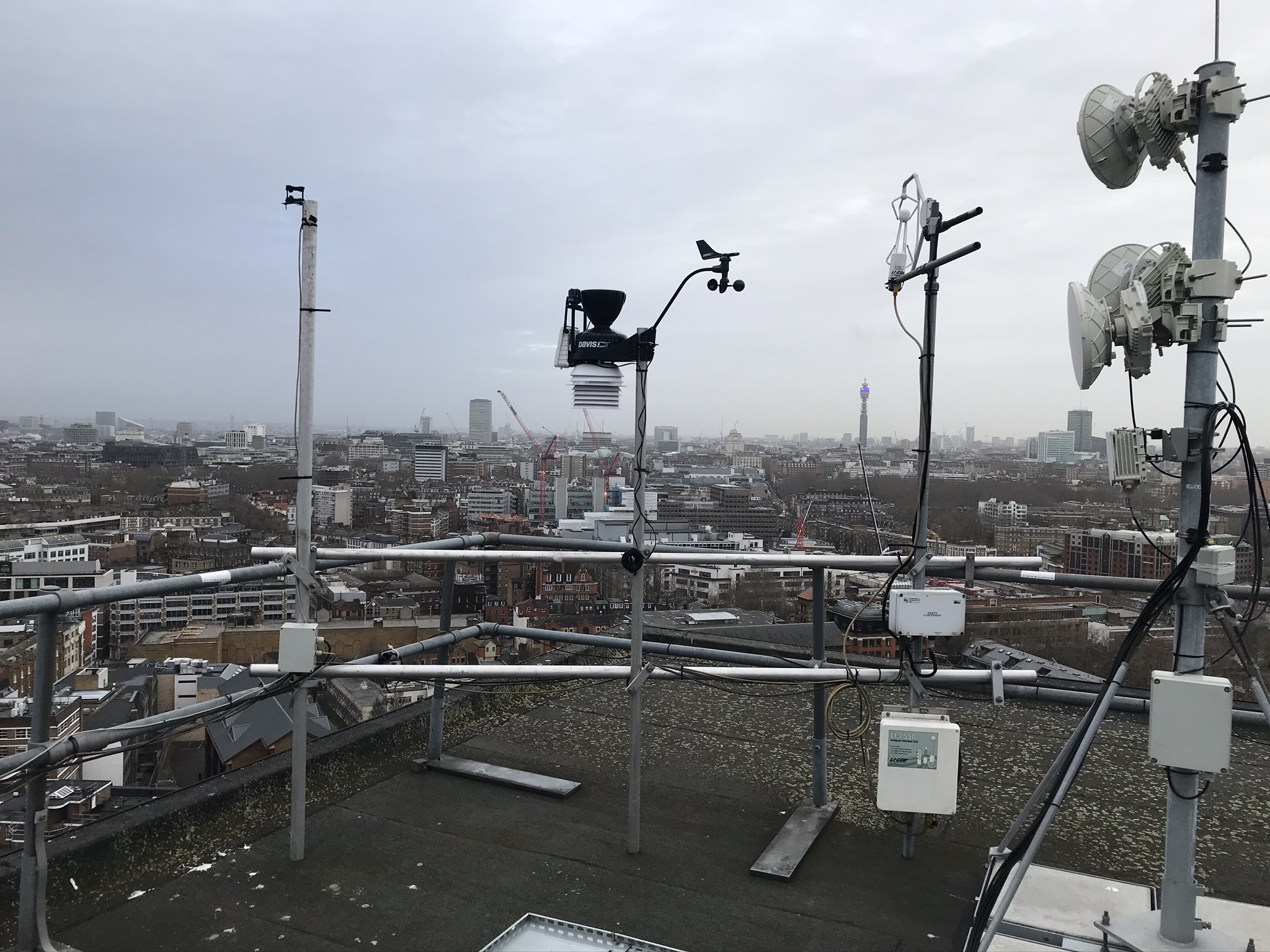

Fig. 3.7 At IMU (on pole to the left) 08/01/2020

3.5.3.8. Supplementary information

Link	Title	Description
Trisonica MiniWS manual.	Trisonica MiniWS manual.	Manual provided by Anemoment.
Trisonica MiniWS datasheet.	Trisonica MiniWS datasheet.	Datasheet provided by Anemoment.

3.5.3.9. Data acquisition

Data can be requested from Prof. Sue Grimmond (c.s.grimmond@reading.ac.uk).
